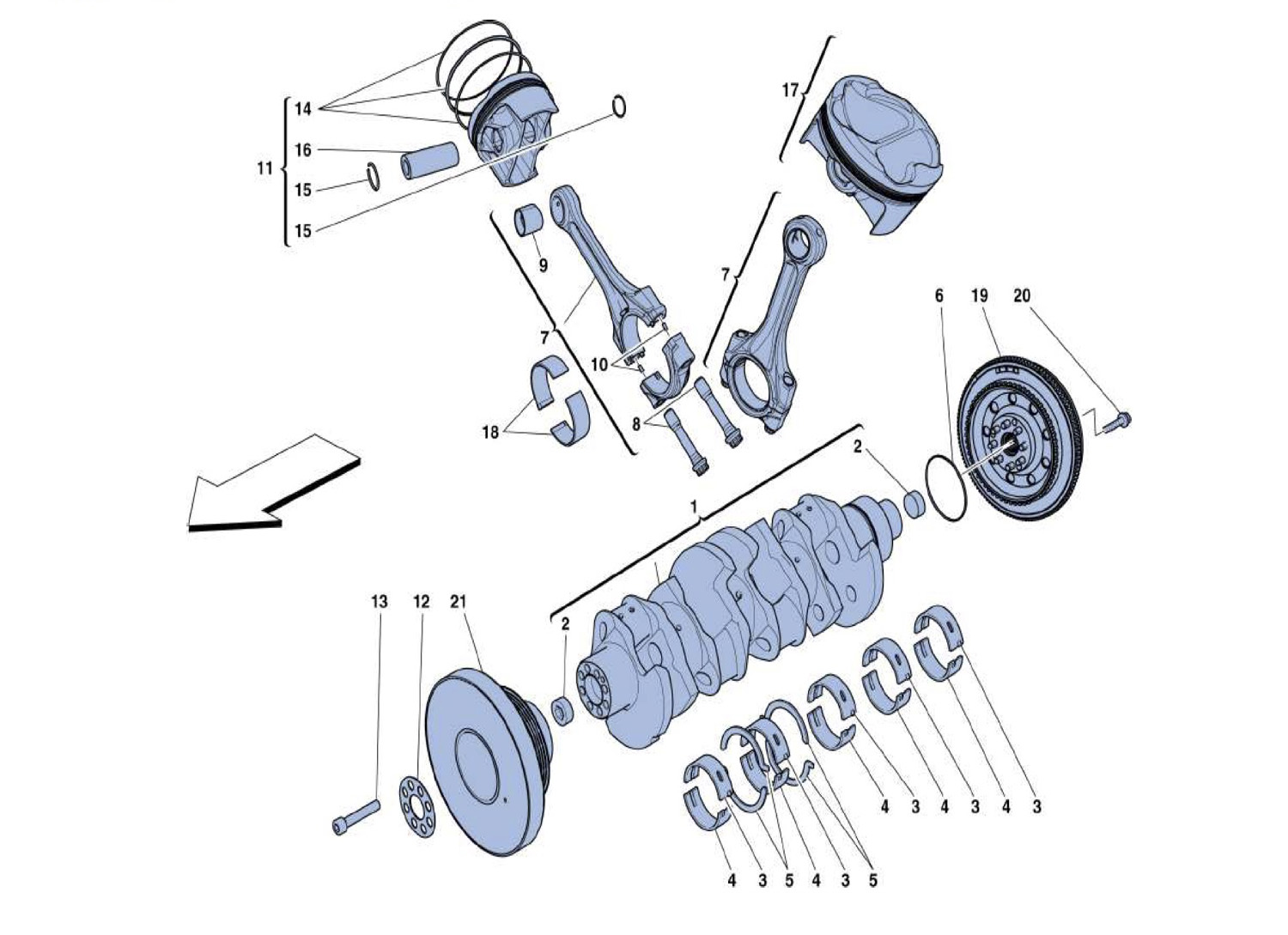

Ferrari / 488 GTB / 002 - Crankshaft - Connecting Rods and Pistons

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 CRANKSHAFT 314109 1
2 THREADED PLUG 176396 2
3 UPPER HALF MAIN BEARING -Green- 271406 5
3 UPPER HALF MAIN BEARING -Yellow- 271408 5
3 UPPER HALF MAIN BEARING -Blue- 271409 5
3 UPPER HALF MAIN BEARING -Brown- 309242 5
3 UPPER HALF MAIN BEARING -Pink- 309243 5
4 LOWER HALF MAIN BEARING -Green- 271412 5
4 LOWER HALF MAIN BEARING -Yellow- 271413 5
4 LOWER HALF MAIN BEARING -Blue- 271414 5
4 LOWER HALF MAIN BEARING -Brown- 309244 5
4 LOWER HALF MAIN BEARING -Pink- 309245 5
5 CRANKSHAFT BEARING SHIM 271589 4
6 O-RING 259917 1
7 COMPL. CONNECTING ROD 304333 8
8 SCREW 270248 16
9 BUSHING 301753 8
10 ALIGNMENT PIN 292751 16
11 COMPL. RH PISTON 296268 4
12 WASHER 271609 1
13 SCREW 14308074 8
14 COMPL. PISTON RING SET 322910 8
15 STOP RING -Applicable until depletion- 270275 16
16 PISTON PIN -No longer supplied- 270274 8
17 COMPL. LH PISTON 296269 4
18 CONNECTING ROD HALF-BEARING -Blue 312692 16
18 CONNECTING ROD HALF-BEARING -Red- 312693 16
18 CONNECTING ROD HALF-BEARING -Pink- 312694 16
19 ENGINE FLYWHEEL 312949 1
20 SCREW 296457 8
21 TORSION DAMPER 311102 1
