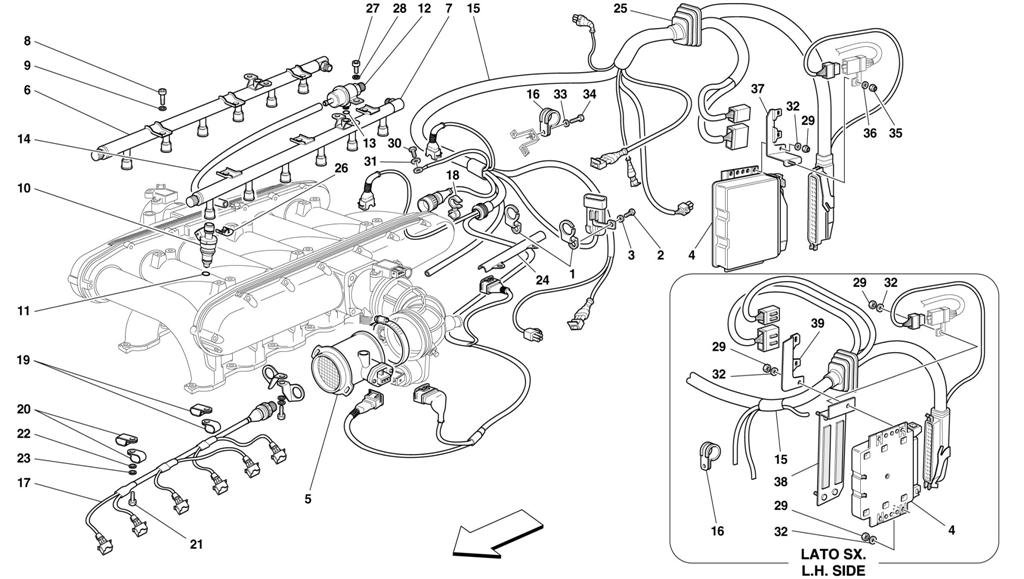

Ferrari / 456M / 017 - Injection Device

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 BRACKET 155327 2
2 SCREW 16043124 2
3 WASHER 127496 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Not for USA, CDN, AUS, BRUNEI and not f 175788 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for not catalyzed cars 175789 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for USA M.Y. 2000 and CDN M.Y. 200 181679 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Not for USA, CDN, AUS, BRUNEI and not 175792 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for USA M.Y. 2000 and CDN M.Y. 2 181680 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for not catalyzed cars 175793 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for USA, CDN and AUS -Not for USA 175795 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for USA, CDN and AUS -Not for U 175797 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for BRUNEI 175805 2
4 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for BRUNEI 175807 2
5 AIR INDICATOR 162530 2
6 R.H. INJECTORS COMPLETE TUBE 173751 1
7 L.H. INJECTORS COMPLETE TUBE 173745 1
8 SCREW 14305724 6
9 WASHER 12601274 6
10 ELECTRO-INJECTOR 162613 12
11 O.R. GASKET 133902 12
12 PRESSURE REGULATOR 167321 2
13 SEAL RING 152211 2
14 RUBBER HOSE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 115148 2
14 RUBBER HOSE -Not for USA M.Y. 2000 and CDN M.Y. 2000 118901 2
15 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid from car Ass. Nr. 32852 179862 1
15 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid from car Ass. Nr. 32852 179863 1
15 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 180506 1
15 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 180507 1
15 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid till car Ass. Nr. 32851 177183 1
15 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid till car Ass. Nr. 32851 177184 1
15 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V 174495 1
15 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V 179857 1
15 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V 174496 1
15 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V 179858 1
16 BRACKET 10441990 2
17 INJECTORS CONNECTION CABLES 168529 2
18 SPRINGS 145545 2
19 FIXING BRACKET 10418401 2
20 FIXING BRACKET 10418601 2
21 SCREW 10902024 2
22 WASHER 12639724 2
23 WASHER 127494 2
24 BRACKET FOR CABLES FIXING 154772 2
25 RUBBER BOOT 139465 2
26 INJECTORS RETAINING CLIP 144763 12
27 SCREW 172763 4
28 WASHER 127494 4
29 NUT 102741 4
30 SCREW 10902024 2
31 WASHER 127494 2
32 WASHER 10519424 4
33 WASHER 127494 1
34 SCREW 10902024 1
35 NUT 113647 2
36 WASHER 12637824 2
37 R.H. BRACKET -Not for RHD 178750 1
37 R.H. BRACKET -Valid for RHD 178751 1
38 ABS CONTROL UNIT FIXING BRACKET 175683 1
39 L.H. BRACKET -Not for RHD 175675 1
39 L.H. BRACKET -Valid for RHD 175674 1
