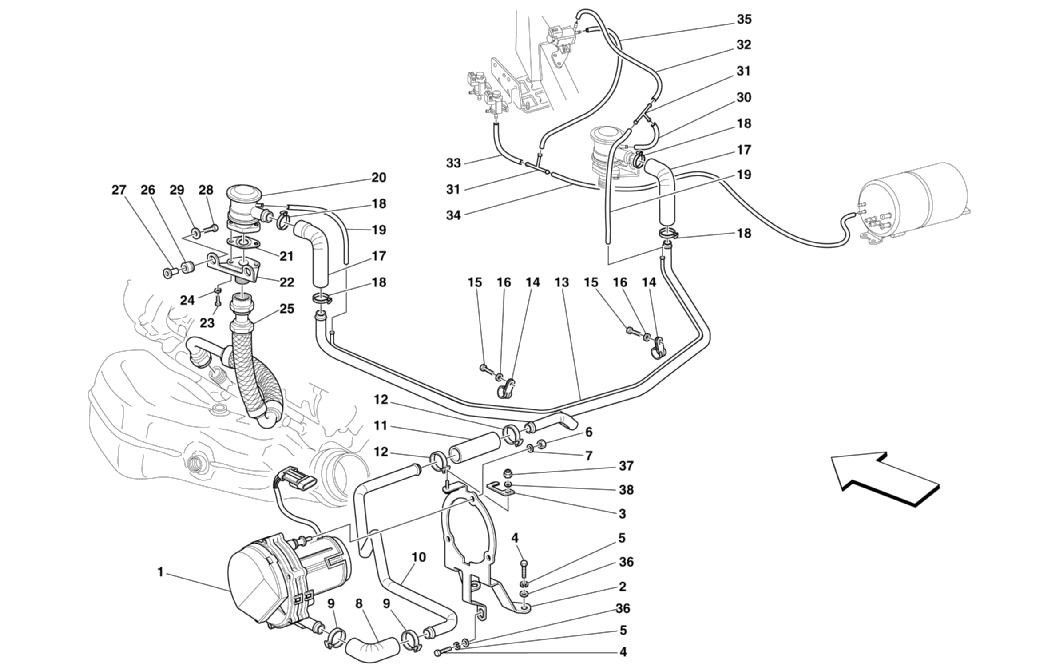

Ferrari / 360 Challenge Stradale / 009 - Secondary AIR System - For US, CDN, and J

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 SECONDARY AIR PUMP 181197 1
2 BRACKET FOR PUMP 182759 1
3 CLIP 156198 1
4 SCREW 10902624 3
5 WASHER 127494 3
6 NUT 15896214 3
7 WASHER 12601274 3
8 AIR PUMP CONNECTION SLEEVE 181994 1
9 CLAMP 178054 2
10 PIPE FROM PUMP TO SLEEVE 181963 1
11 SLEEVE 155116 1
12 CLAMP 178054 2
13 AIR DELIVERY TUBE 178435 1
14 BRACKET WITH SHEATH 10441990 2
15 SCREW 10902224 2
16 WASHER 12620474 2
17 SLEEVE 154652 2
18 CLAMP 178054 4
19 RUBBER HOSE 147119 2
20 SECONDARY AIR VALVE 171175 2
21 GASKET 172303 2
22 COMPLETE BRACKET 184859 2
23 SCREW 10902224 4
24 WASHER 127494 2
25 CONNECTION PIPE 178062 2
26 CABLE GROMMET 177576 4
27 SPACER 149707 4
28 SCREW 10902824 4
29 WASHER 12643724 4
30 RUBBER HOSE 147121 1
31 3-WAY UNION 146972 2
32 RUBBER HOSE 115411 1
33 RUBBER HOSE 121828 1
34 RUBBER HOSE 117170 1
35 RUBBER HOSE 159542 1
36 WASHER 10519424 3
37 NUT 62790300 1
38 WASHER 10519224 1
