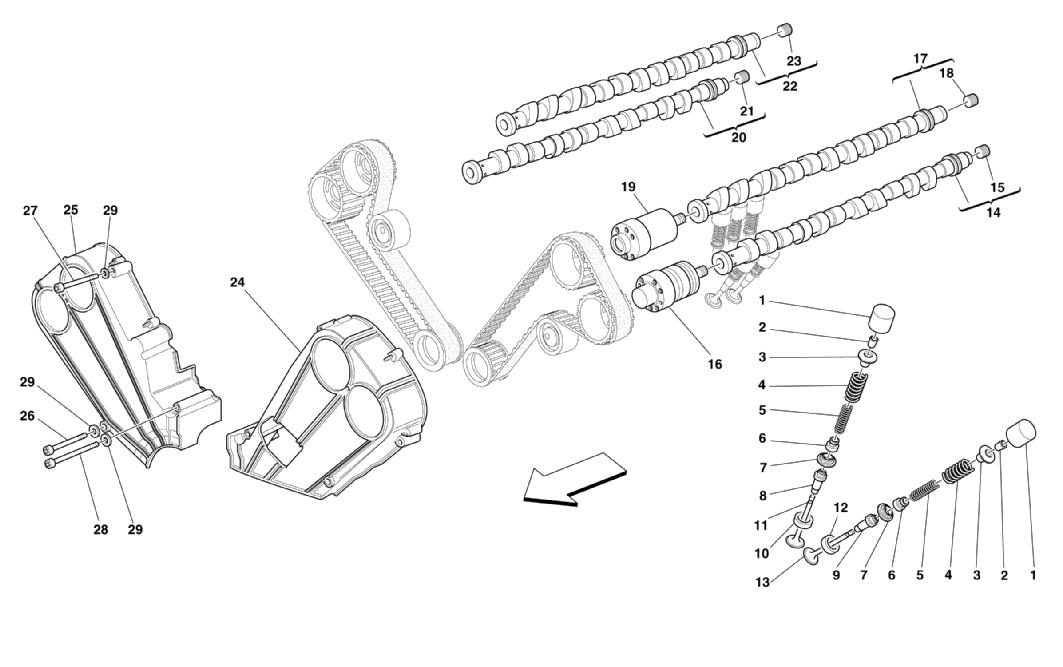

Ferrari / 360 Challenge Stradale / 005 - Timing - Tappets

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 TAPPET FOR VALVE CONTROL 195017 40
2 COTTER FOR VALVE SPRING 157986 80
3 UPPER CUP 157989 40
4 OUTER SPRING FOR VALVE RETURN 180192 40
5 INNER SPRING FOR VALVE RETURN 180208 40
6 OIL RING 148153R 40
7 LOWER CUP -OVERSIZED 199104 40
7 LOWER CUP 199084 40
8 INTAKE VALVE GUIDE 176437R 24
8 INTAKE VALVE GUIDE -OVERSIZED 172452 24
9 EXHAUST VALVE GUIDE 176438R 16
9 EXHAUST VALVE GUIDE -OVERSIZED 172453 16
10 INTAKE VALVE SEAT 6179281 24
11 INTAKE VALVE 175157 24
12 EXHAUST VALVE SEAT 6173433 16
13 EXHAUST VALVE 157988R 16
14 COMPLETE L.H. EXHAUST CAM SHAFT 206081 1
15 THREADED PLUG 10269550 1
16 EXHAUST PHASE VARIATOR 190042 2
17 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT 206080 1
18 THREADED PLUG 10269550 1
19 BUSHING 176101 2
20 COMPLETE R.H. EXHAUST CAM SHAFT 206079 1
21 THREADED PLUG 10269550 1
22 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT 206078 1
23 THREADED PLUG 10269550 1
24 L.H. COVER 180305 1
25 R.H. COVER 169736 1
26 SCREW 156829 2
27 SCREW 167266 4
28 SCREW 156839 2
29 WASHER 12604274 8
