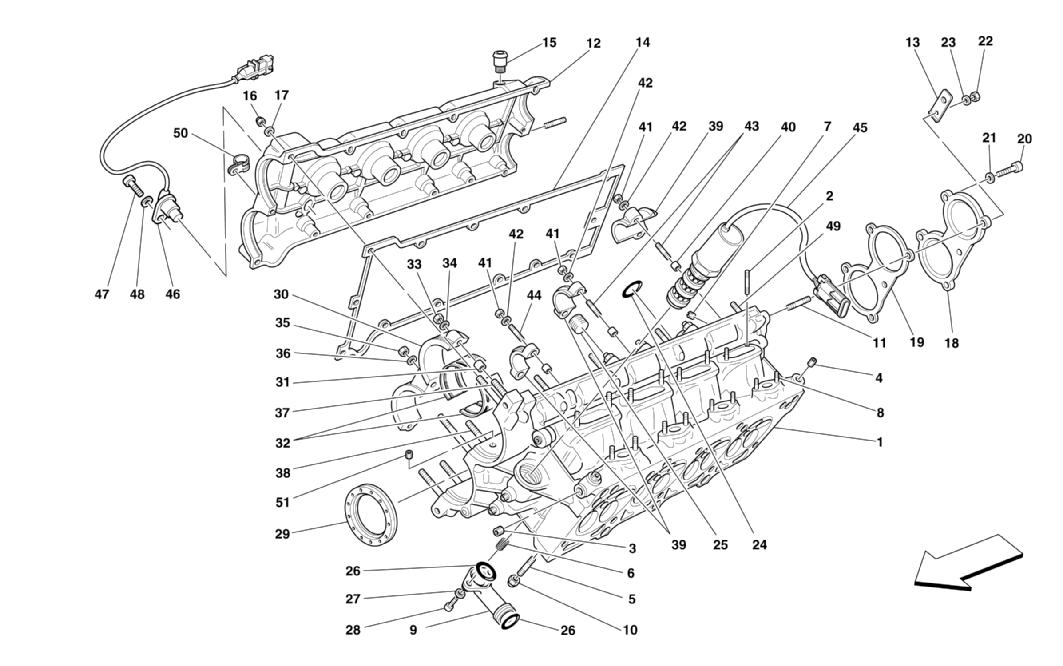

Ferrari / 360 Challenge Stradale / 003 - Cylinder Head - Right

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
N/A COMPLETE R.H. CYLINDERS HEAD -Valid from engine Nr. 78049 206490 1
1 R.H. HEAD -Not as spare part -With the complete cylinders head 201698 -Valid till engine Nr. 199712 1
1 R.H. HEAD -Not as spare part -With the complete cylinders head 206490 -Valid from engine Nr. 204696 1
2 STUD 13541224 8
3 THREADED PLUG 14326101 9
4 THREADED PLUG 14326001 3
5 STUD 13543324 8
6 THREADED INSERT 13525170 6
7 THREADED PLUG 141563 2
8 STUD 11500224 8
9 OIL EXHAUST DUCTING 151485 3
10 NUT 138392 8
11 STUD 13541024 3
12 R.H. CYLINDERS HEAD COVER -Not as spare part -With the complete cylinders head 201698 176450 1
13 BRACKET 178316 1
14 GASKET 173540 1
15 UNION 173985 1
16 NUT 100044 13
17 WASHER 12604274 13
18 REAR SMALL COVER 177019 1
19 COVER GASKET 177055 1
20 SCREW 14432224 2
21 WASHER 12604274 2
22 NUT 102741 3
23 WASHER 12601274 3
24 O.R. GASKET 167135 4
25 THREADED PLUG 127635 5
26 O.R. GASKET 147278 6
27 WASHER 12601174 6
28 SCREW 212538 6
28 SCREW -Not as spare part -Replaced by 212538 14304224 6
29 SEAL RING 187140 2
30 FRONT SUPPORT -Not as spare part -With the complete cylinders head 201698 173784 1
31 CENTERING DOWEL 102725 2
32 HALF BEARING 182694 4
33 NUT 15896214 2
34 WASHER 11197771 2
35 NUT 16100814 1
36 WASHER 11193874 1
37 STUD 13541724 2
38 STUD 13543424 1
40 CENTERING DOWEL 102725 22
41 NUT 15896214 22
42 WASHER 11197771 22
43 STUD 13541324 14
44 STUD FOR INTAKE SIDE INTERMEDIATE CAP 13541324 8
45 VARIATOR CONTROL SOLENOID VALVE -Valid after stock exhaustion of 182260 195086 1
46 PHASE SENSOR 177673 1
47 SCREW 14305724 1
48 WASHER 12601274 1
49 STUD 13541124 5
49 STUD 13541624 1
49 STUD 11500624 1
49 STUD 13541724 1
49 STUD 13541324 3
49 STUD 13542024 1
49 STUD 13541824 1
50 BRACKET WITH SHEATH 10441890 1
51 THREADED PLUG -Valid from engine Nr. 78049 198823 2
