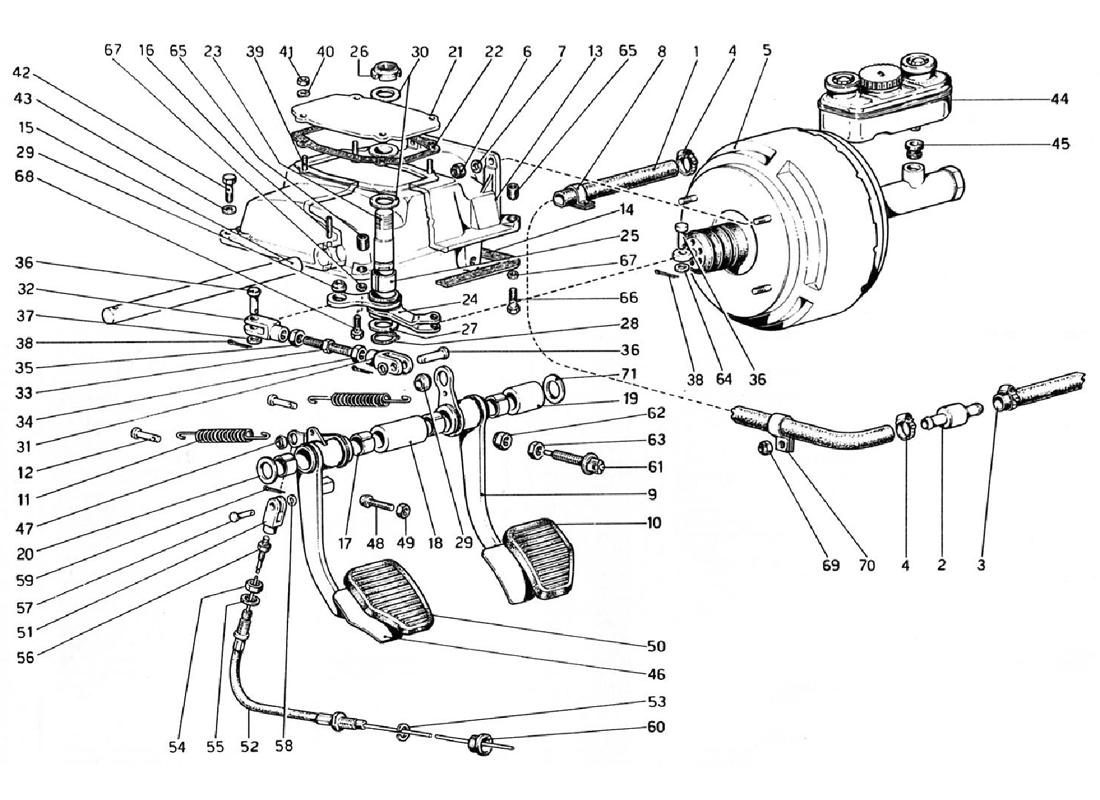

Ferrari / 308 GTB 1976 / 028 - Pedal Board - Brake and Clutch Controls
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Servo Pipe | 108951 | POA | 1 | 0 |
|
|
| 2 | Servo Valve | 101538 | POA | 1 | 0 |
|
|
| 3 | Servo Hose | 107982 | POA | 1 | 0 |
|
|
| 4 | Jubilee Clip | 100507 | POA | 4 | 0 |
|
|
| 5 | Servo LHD | 108820 | POA | 1 | 0 |
|
|
| 6 | Nut | 16104411 | 0.99 | 4 | 0 |
|
|
| 7 | Washer | 12601371 | POA | 4 | 0 |
|
|
| 8 | Jubilee Clip | 10418900 | POA | 1 | 0 |
|
|
| 9 | Brake Pedal | 108524 | POA | 1 | 0 |
|
|
| 9 | Brake Pedal | 108533 | POA | 1 | 0 |
|
|
| 10 | Pedal Cover | 106950 | 31.52 | 1 | 195 |
|
|
| 11 | Spring | 104895 | 33.53 | 2 | 0 |
|
|
| 12 | Clevis Pin | 104896 | 34.64 | 2 | 1 | ||
| 13 | Pedal Box Support Complete | 108022 | POA | 1 | 0 |
|
|
| 13 | Pedal Box Support | 106187 | POA | 1 | 0 |
|
|
| 14 | Gasket | 104899 | POA | 1 | 0 |
|
|
| 15 | Pin | 104900 | POA | 1 | 0 |
|
|
| 16 | Roll Pin | 104901 | POA | 1 | 0 |
|
|
| 17 | Bush | 103163 | 8.49 | 4 | 4 |
|
|
| 18 | Spacer | 104902 | POA | 1 | 0 |
|
|
| 19 | Spacer | 104903 | POA | 1 | 0 |
|
|
| 20 | Washer 1.0mm | 106083 | POA | 1 | 0 |
|
|
| 21 | Cover RHD | 104904 | 9.77 | 1 | 1 | ||
| 22 | Gasket | 104905 | POA | 1 | 0 |
|
|
| 23 | Brake Pedal Linkage Pin | 106081 | POA | 1 | 0 |
|
|
| 24 | Lever | 108313 | POA | 1 | 0 |
|
|
| 25 | Suspension Inner Bush | 100787 | 7.21 | 1 | 235 |
|
|
| 26 | Ring Nut | 106082 | 14.32 | 1 | 1 | ||
| 27 | Spacer | 108382 | POA | 1 | 0 |
|
|
| 28 | Snap Ring | 11066875 | POA | 1 | 0 |
|
|
| 29 | Spherical Joint | 100424 | 54.58 | 2 | 4 |
|
|
| 30 | Washer | 106084 | POA | 2 | 0 |
|
|
| 31 | Right Hand Threaded Fork | 104910 | 10.09 | 1 | 4 |
|
|
| 32 | Left Hand Threaded Fork | 104911 | 24.69 | 1 | 2 |
|
|
| 33 | Rod | 104912 | 23.73 | 1 | 5 |
|
|
| 34 | Left Hand Thread Nut | 103157 | POA | 1 | 0 |
|
|
| 35 | Nut | 103160 | POA | 1 | 0 |
|
|
| 36 | Pin | 10033411 | 8.48 | 3 | 3 |
|
|
| 37 | Washer | 103167 | 3.95 | 2 | 0 |
|
|
| 38 | Split Pin | 10796301 | POA | 3 | 0 |
|
|
| 39 | Threaded Stud | 11500021 | POA | 4 | 0 |
|
|
| 40 | Wavy Washer 6mm | 12601271 | 0.14 | 4 | 2 |
|
|
| 41 | Nut | 15896211 | 0.68 | 4 | 0 |
|
|
| 42 | Bolt | 16139021 | POA | 2 | 0 |
|
|
| 43 | Washer | 12601471 | POA | 2 | 0 |
|
|
| 44 | Brake Fluid Reservoir | 108802 | 561.27 | 1 | 0 |
|
|
| 45 | Seal Ring for Master Cylinder | 106625 | POA | 2 | 0 |
|
|
| 46 | Clutch Pedal | 108534 | POA | 1 | 0 |
|
|
| 46 | Clutch Pedal | 108523 | POA | 1 | 0 |
|
|
| 47 | Rose Bearing | 100423 | POA | 1 | 0 |
|
|
| 48 | Pedal Adjuster | 106409 | POA | 1 | 0 |
|
|
| 49 | Nut | 16100321 | POA | 1 | 0 |
|
|
| 50 | Pedal Rubber | 106949 | 26.66 | 1 | 140 |
|
|
| 51 | Fork | 108575 | 75.92 | 1 | 2 |
|
|
| 52 | Clutch Cable LHD | 106745 | 56.15 | 1 | 8 |
|
|
| 53 | Washer | 12601671 | POA | 1 | 0 |
|
|
| 54 | Nut | 16103611 | POA | 1 | 0 |
|
|
| 55 | Washer | 12601571 | 0.59 | 1 | 0 |
|
|
| 56 | Right Hand Thread Nut | 100861 | POA | 1 | 0 |
|
|
| 57 | Clevis Pin | 103218 | 23.18 | 1 | 0 |
|
|
| 58 | Washer | 12639701 | POA | 1 | 0 |
|
|
| 59 | Split Pin | 10734201 | POA | 1 | 0 |
|
|
| 60 | Slide | 105369 | 18.12 | 3 | 3 |
|
|
| 61 | Stop Light Switch | 101663 | 58.72 | 1 | 108 |
|
|
| 62 | Nut | 101662 | 3.49 | 1 | 3 |
|
|
| 63 | Nut | 10791211 | 0.53 | 1 | 4 |
|
|
| 64 | Plain Washer | 10730521 | POA | 1 | 0 |
|
|
| 65 | Bush | 106188 | POA | 2 | 0 |
|
|
| 66 | Screw 8x55 | 16044321 | 0.56 | 1 | 0 |
|
|
| 67 | Spring Washer 8mm | 106852 | 0.36 | 2 | 0 |
|
|
| 68 | Screw | 16043621 | 0.99 | 1 | 3 |
|
|
| 69 | Nut | 12575421 | POA | 1 | 0 |
|
|
| 70 | Jubilee Clip | 10441890 | POA | 1 | 0 |
|
|
| 71 | Con Rod Half Bearing Standard | 106183 | 24.63 | 1 | 0 |
|
