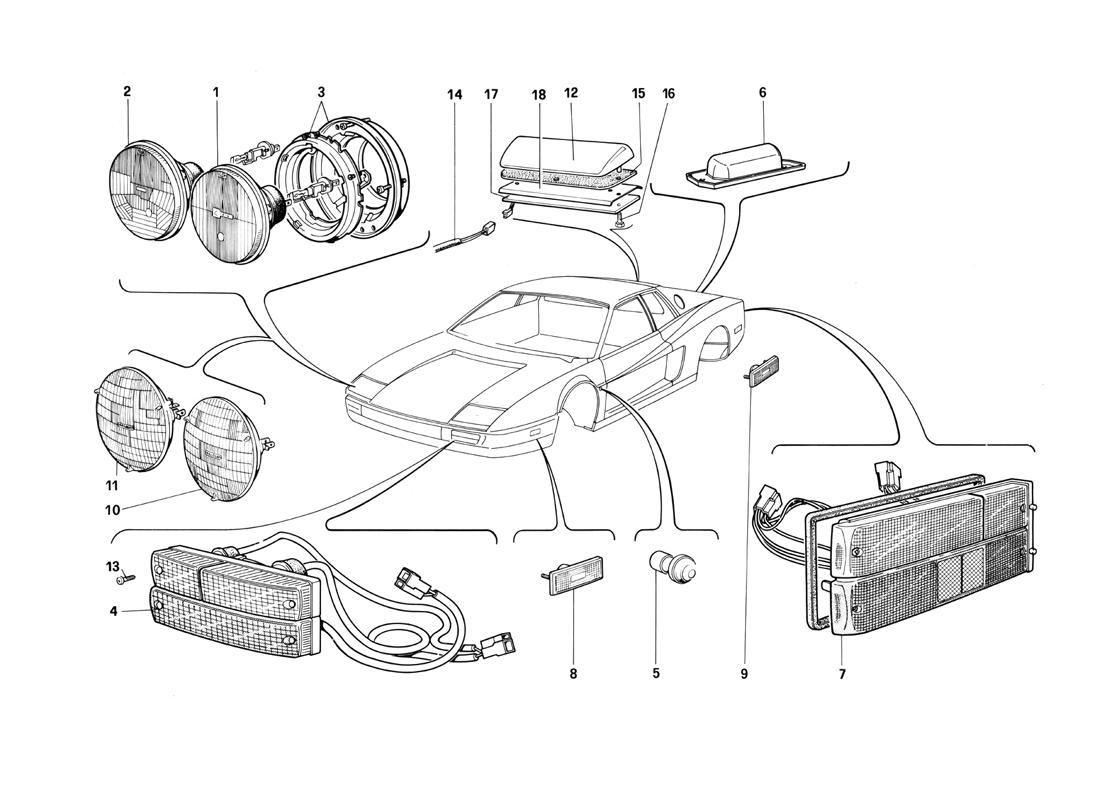

Ferrari / Testarossa (1990) / 123 - Lamps
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | High beam lamp Not for F | 60907200 | POA | 2 | 0 |
|
|
| 1 | High beam lamp For F | 61005400 | POA | 2 | 0 |
|
|
| 2 | Low beam lamp For RHD and J | 60944800 | POA | 2 | 0 |
|
|
| 2 | Low beam lamp For F | 61005600 | POA | 2 | 0 |
|
|
| 2 | Low beam lamp Not for RHD - F - J | 60907400 | POA | 2 | 0 |
|
|
| 3 | Ring frame for left high beam lamp | 61646500 | POA | 1 | 0 |
|
|
| 3 | Ring frame for left low beam lamp | 61646700 | POA | 1 | 0 |
|
|
| 3 | Ring frame for right low beam lamp | 61646600 | POA | 1 | 0 |
|
|
| 3 | Ring frame for right high beam lamp | 61646400 | POA | 1 | 0 |
|
|
| 4 | Lens for front left light For RHD | 61536200 | POA | 1 | 0 |
|
|
| 4 | Lens for front left light For US | 61536400 | POA | 1 | 0 |
|
|
| 4 | Front left side - direction flashing lightFor F | 61816000 | POA | 1 | 0 |
|
|
| 4 | Lens for front left light For LHD | 61536000 | POA | 1 | 0 |
|
|
| 4 | Front riont side - direction flashing lightFor US | 61652300 | POA | 1 | 0 |
|
|
| 4 | Lens for front right light For RHD | 61536100 | POA | 1 | 0 |
|
|
| 4 | Lens for front right light For US | 61536300 | POA | 1 | 0 |
|
|
| 4 | Front right side - direction - flashing light for LHDNot for US - D - F | 61725800 | POA | 1 | 0 |
|
|
| 4 | Front right side - direction - flashing lightFor F | 61815900 | POA | 1 | 0 |
|
|
| 4 | Front right side - direction - flashingFor RHD and D | 61643200 | POA | 1 | 0 |
|
|
| 4 | Lens for front right light For LHD | 61535900 | POA | 1 | 0 |
|
|
| 4 | Front left side - direction - flashingFor RHD and D | 61643300 | POA | 1 | 0 |
|
|
| 4 | Front left side - direction - flashing lightFor US | 61652400 | POA | 1 | 0 |
|
|
| 4 | Front left side - direction - flashing light for LHDNot for US - D - F | 61725900 | POA | 1 | 0 |
|
|
| 5 | Side direction light Not for US | 61646800 | POA | 2 | 0 |
|
|
| 6 | Plate light | 61558800 | POA | 2 | 0 |
|
|
| 7 | Lens for rear left light | 61536600 | POA | 1 | 0 |
|
|
| 7 | Lens for rear right light | 61536500 | POA | 1 | 0 |
|
|
| 7 | Rear left light For US and J | 61652800 | POA | 1 | 0 |
|
|
| 7 | Lens for rear left light | 61536800 | POA | 1 | 0 |
|
|
| 7 | Rear right light Not for US and J | 61643400 | POA | 1 | 0 |
|
|
| 7 | Lens for rear right light | 61536700 | POA | 1 | 0 |
|
|
| 7 | Rear right light For US and J | 61652700 | POA | 1 | 0 |
|
|
| 7 | Rear left light Not for US and J | 61643500 | POA | 1 | 0 |
|
|
| 8 | Front side marker For US | 61652500 | POA | 2 | 0 |
|
|
| 9 | Rear side marker For US | 61652600 | POA | 2 | 0 |
|
|
| 10 | Headlamp main beams For US | 61610500 | POA | 2 | 0 |
|
|
| 11 | Headlamp dipped beamsFor US | 61610600 | POA | 2 | 0 |
|
|
| 12 | Additional stop lights For US | 61892900 | POA | 1 | 0 |
|
|
| 13 | Screw | 131373 | POA | 12 | 0 |
|
|
| 14 | Cable | 129319 | POA | 1 | 0 |
|
|
| 15 | Gasket | 61895400 | POA | 1 | 0 |
|
|
| 16 | Screw | 61565100 | POA | 2 | 0 |
|
|
| 17 | Insulation | 61542000 | POA | 1 | 0 |
|
|
| 18 | Support | 61567400 | POA | 1 | 0 |
|
