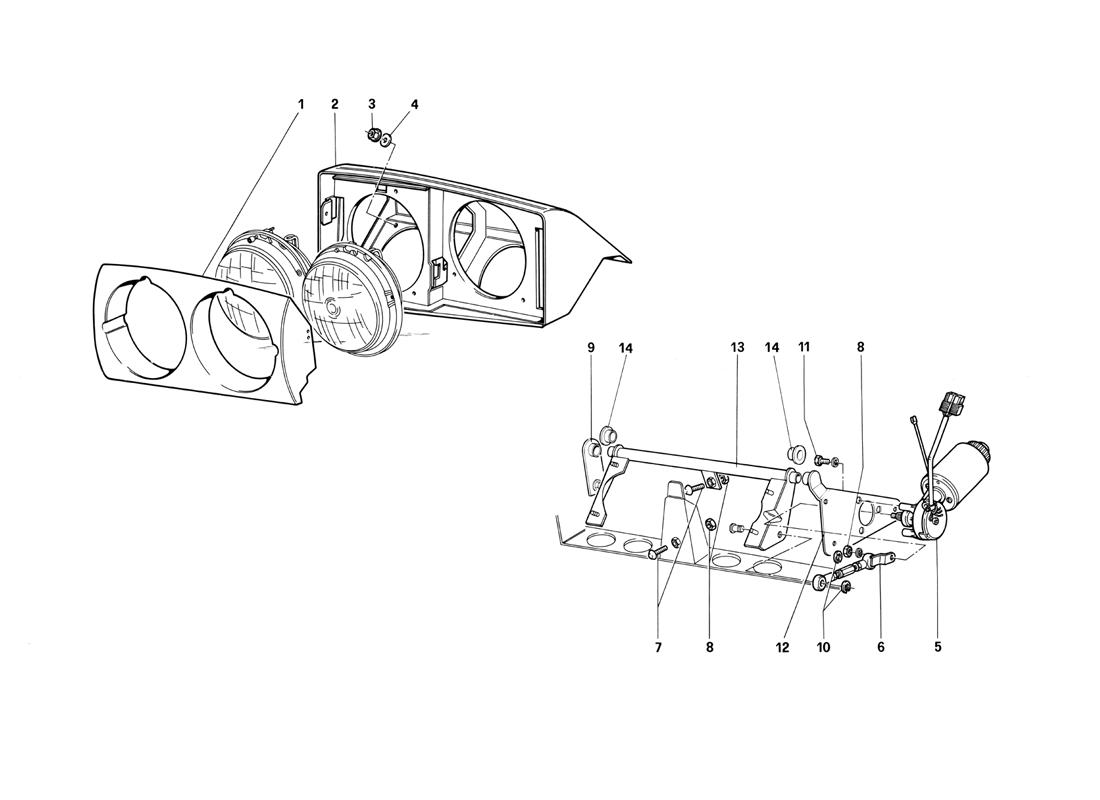

Ferrari / Testarossa (1990) / 122 - Front Headlight Device
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Right headlamp frame | 61527200 | POA | 1 | 0 |
|
|
| 2 | Housingfor left headlamp flap | 61527500 | POA | 1 | 0 |
|
|
| 2 | Housing for right headlamp flap | 61527400 | POA | 1 | 0 |
|
|
| 3 | Nut | 14084011 | POA | 8 | 0 |
|
|
| 4 | Washer | 10520101 | POA | 8 | 0 |
|
|
| 5 | Lifting motor for left headlamp | 60727600 | POA | 1 | 0 |
|
|
| 5 | Lifting motor for right headlamp | 60727500 | POA | 1 | 0 |
|
|
| 6 | Connecting rod | 61268600 | POA | 2 | 0 |
|
|
| 7 | Pin | 61566800 | POA | 6 | 0 |
|
|
| 8 | Nut | 15896211 | POA | 10 | 0 |
|
|
| 9 | Right bracket | 61556000 | POA | 1 | 0 |
|
|
| 9 | Left bracket | 61556100 | POA | 1 | 0 |
|
|
| 10 | Spring ring | 16160976 | POA | 6 | 0 |
|
|
| 11 | Screw | 15908306 | POA | 2 | 0 |
|
|
| 12 | L.H. support bracket | 61531300 | POA | 1 | 0 |
|
|
| 12 | R.H. support bracket | 61531200 | POA | 1 | 0 |
|
|
| 13 | Lifting linkage for right lamp | 61531000 | POA | 1 | 0 |
|
|
| 13 | Lifting linkage for left lamp | 61531100 | POA | 1 | 0 |
|
|
| 14 | Bushing | 61575500 | POA | 2 | 0 |
|
