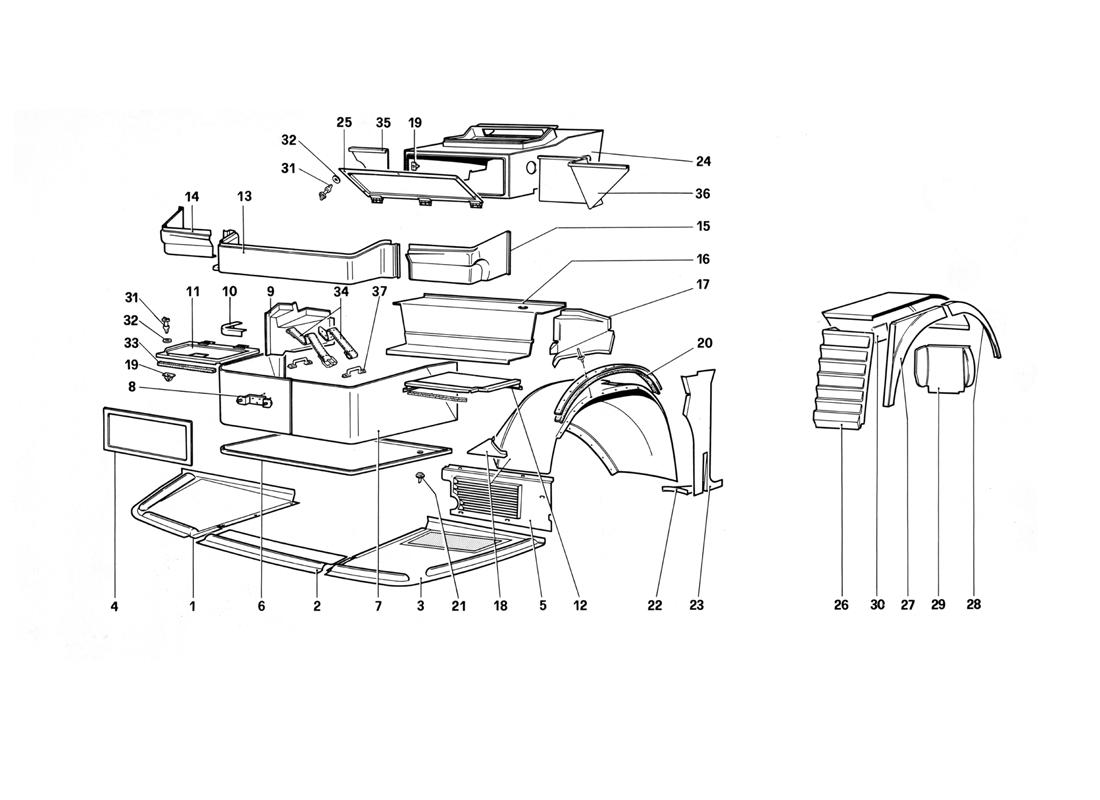

Ferrari / Testarossa (1990) / 102 - Body - Internal Components
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Right front bottom plate | 61478600 | POA | 1 | 0 |
|
|
| 2 | Central front bottom plate | 61478700 | POA | 1 | 0 |
|
|
| 3 | Left front bottom plate | 61478800 | POA | 1 | 0 |
|
|
| 4 | RH wheelarch front shieldpanel | 61478900 | POA | 1 | 0 |
|
|
| 5 | Shieldpanel for condenser | 61479000 | POA | 1 | 0 |
|
|
| 6 | Trunk bottom plate | 61479100 | POA | 1 | 0 |
|
|
| 7 | Central movable lower shieldpanel | 61479200 | POA | 1 | 0 |
|
|
| 8 | Horn support bracket | 61479300 | POA | 1 | 0 |
|
|
| 9 | Right angle piece for wheel house | 61479400 | POA | 1 | 0 |
|
|
| 9 | Left angle piece for wheel house | 61479500 | POA | 1 | 0 |
|
|
| 10 | Right support for luggage compartment | 61479600 | POA | 1 | 0 |
|
|
| 10 | Left support for luggage compartment | 61479700 | POA | 1 | 0 |
|
|
| 11 | Battery compartment lid | 61479800 | POA | 1 | 0 |
|
|
| 12 | Condenser compartment lid | 61479900 | POA | 1 | 0 |
|
|
| 13 | Central movable shieldpanel | 61480000 | POA | 1 | 0 |
|
|
| 14 | Right movable shieldpanel | 61480100 | POA | 1 | 0 |
|
|
| 15 | Left movable shieldpanel | 61480200 | POA | 1 | 0 |
|
|
| 16 | Rear shieldpanel | 61480300 | POA | 1 | 0 |
|
|
| 17 | Right front panel | 61480500 | POA | 1 | 0 |
|
|
| 17 | Left front panel | 61480400 | POA | 1 | 0 |
|
|
| 18 | Wheelhouse, front right | 61480700 | POA | 1 | 0 |
|
|
| 18 | Wheelhouse, front left | 61480600 | POA | 1 | 0 |
|
|
| 19 | Clip | 61529200 | POA | 6 | 0 |
|
|
| 20 | Wheelhouse gasket | 61481000 | POA | 2 | 0 |
|
|
| 21 | Plug | 60731300 | POA | 1 | 0 |
|
|
| 22 | Left cover | 61481300 | POA | 1 | 0 |
|
|
| 22 | Right cover | 61481200 | POA | 1 | 0 |
|
|
| 23 | Left door inner pillar | 61481500 | POA | 1 | 0 |
|
|
| 23 | Right door inner pillar | 61481400 | POA | 1 | 0 |
|
|
| 24 | Air condition case | 61481600 | POA | 1 | 0 |
|
|
| 25 | Electric board cover | 61481700 | POA | 1 | 0 |
|
|
| 26 | Front section of rear left wheelhouse | 61481900 | POA | 1 | 0 |
|
|
| 26 | Front section of rear right wheelhouse | 61481800 | POA | 1 | 0 |
|
|
| 27 | Front side section of rear right | 61482000 | POA | 1 | 0 |
|
|
| 27 | Front side section of rear left | 61482100 | POA | 1 | 0 |
|
|
| 28 | Rear side section of rear left | 61482200 | POA | 1 | 0 |
|
|
| 28 | Rear side section of rear left | 61482300 | POA | 1 | 0 |
|
|
| 29 | Rear section of rear right wheelhouse | 61482400 | POA | 1 | 0 |
|
|
| 29 | Rear section of rear left wheelhouse | 61482500 | POA | 1 | 0 |
|
|
| 30 | Upper section of rear right wheelhouse | 61482600 | POA | 1 | 0 |
|
|
| 30 | Upper section of rear left wheelhouse | 61482700 | POA | 1 | 0 |
|
|
| 31 | Pin securing battery and condenser compartment lid | 61530300 | POA | 6 | 0 |
|
|
| 32 | Pin gasket | 61529400 | POA | 6 | 0 |
|
|
| 33 | Gasket | 61538600 | POA | 1 | 0 |
|
|
| 34 | Spare wheel retaining belt Not for SA | 61538300 | POA | 1 | 0 |
|
|
| 34 | Spare wheel retaining belt For SA | 61568000 | POA | 1 | 0 |
|
|
| 35 | Right protection LHD | 61546100 | POA | 1 | 0 |
|
|
| 35 | Right protection RHD | 61546300 | POA | 1 | 0 |
|
|
| 36 | Left protection RHD | 61546400 | POA | 1 | 0 |
|
|
| 36 | Left protection LHD | 61546200 | POA | 1 | 0 |
|
|
| 37 | Bracket for retaining belt | 30029904 | POA | 2 | 0 |
|
