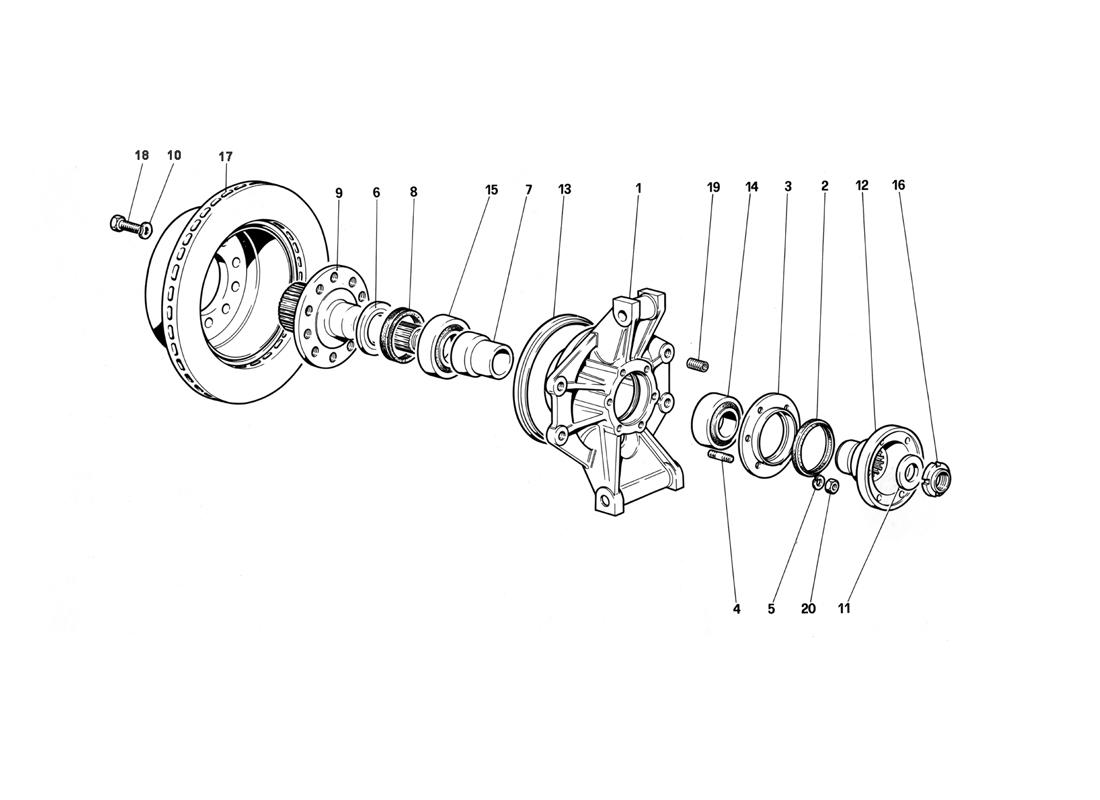

Ferrari / Testarossa (1990) / 049 - Rear Suspension - Brake Disc - Until Car No. 75995
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Hub holder | 135082 | POA | 2 | 0 |
|
|
| 2 | Seal ring | 115968 | POA | 2 | 0 |
|
|
| 3 | Bearing retaining flange | 125976 | POA | 2 | 0 |
|
|
| 4 | Stud | 13543321 | POA | 12 | 0 |
|
|
| 5 | Washer | 10516671 | POA | 12 | 0 |
|
|
| 6 | Spacer | 118190 | POA | 2 | 0 |
|
|
| 7 | Bearing spacer | 110578 | POA | 2 | 0 |
|
|
| 8 | HUB OIL SEAL | 110579 | POA | 2 | 0 |
|
|
| 9 | Shaft with right hub | 125739 | POA | 1 | 0 |
|
|
| 9 | Shaft with left hub | 125738 | POA | 1 | 0 |
|
|
| 10 | Washer | 106853 | 0.50 | 20 | 0 |
|
|
| 11 | Washer for axle shaft flange | 105511 | 13.44 | 2 | 0 |
|
|
| 12 | Axle shaft flange on wheel hub | 119372 | POA | 2 | 0 |
|
|
| 13 | Water shield | 101546 | POA | 2 | 0 |
|
|
| 14 | Inner bearing | 125934 | POA | 2 | 0 |
|
|
| 15 | Outer bearing | 125935 | POA | 2 | 0 |
|
|
| 16 | Ring nut | 102289 | POA | 2 | 0 |
|
|
| 17 | Brake disc | 125735 | POA | 2 | 0 |
|
|
| 18 | Disc securing screw | 125736 | POA | 20 | 0 |
|
|
| 19 | Heli-coil | 13524570 | POA | 4 | 0 |
|
|
| 20 | Nut | 16100821 | POA | 12 | 0 |
|
