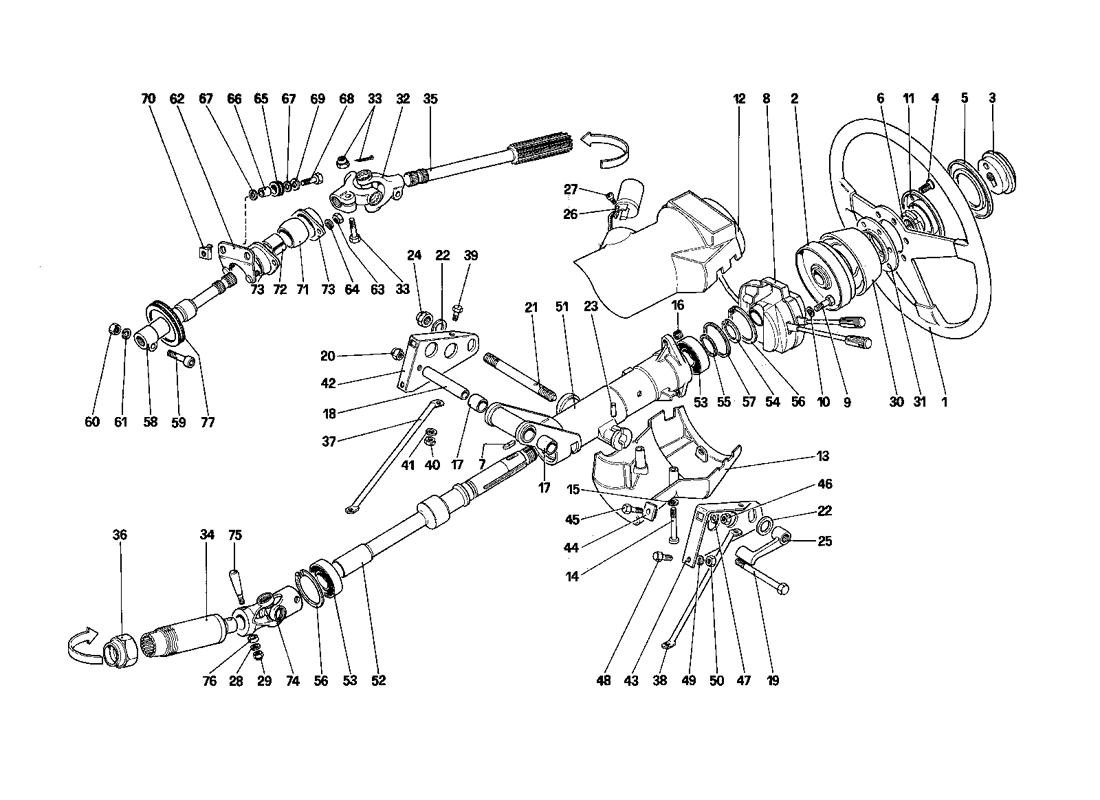

Ferrari / Testarossa (1990) / 043 - Steering Column - Starting From Car No. 75997 to Car No. 80422
Go to order form
Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
---|---|---|---|---|---|---|---|
1 | Steering wheel | 119036 | POA | 1 | 0 |
|
|
2 | Steering wheel hub | 122244 | POA | 1 | 0 |
|
|
3 | Horn push button with holder | 130899 | POA | 1 | 0 |
|
|
4 | Screw | 111189 | POA | 6 | 0 |
|
|
5 | Ring nut to cover screw | 119040 | POA | 1 | 0 |
|
|
6 | Ring nut | 106082 | 14.32 | 1 | 0 |
|
|
7 | Key | 101106 | POA | 1 | 0 |
|
|
8 | Main switching unit | 121561 | POA | 1 | 0 |
|
|
9 | Screw | 10390211 | POA | 2 | 0 |
|
|
10 | Washer | 12601271 | POA | 2 | 0 |
|
|
11 | Ring nut for push | 136507 | POA | 2 | 0 |
|
|
12 | Upper steering colomn cover | 121580 | POA | 1 | 0 |
|
|
13 | Lower steering colomn cover | 121581 | POA | 1 | 0 |
|
|
14 | Screw | 13275217 | POA | 2 | 0 |
|
|
15 | Washer | 12601171 | POA | 2 | 0 |
|
|
16 | Heli coil | 13525170 | POA | 2 | 0 |
|
|
17 | Bush | 121588 | POA | 2 | 0 |
|
|
18 | Pipe for steering wheel adjusting pivot | 121589 | POA | 1 | 0 |
|
|
19 | Screw | 16045021 | POA | 1 | 0 |
|
|
20 | Selflocking nut | 16104421 | POA | 1 | 0 |
|
|
21 | Spindle for lever | 120988 | POA | 1 | 0 |
|
|
22 | Washer | 114865 | POA | 2 | 0 |
|
|
23 | Pin | 14163870 | POA | 1 | 0 |
|
|
24 | Selflocking nut | 16105121 | POA | 1 | 0 |
|
|
25 | Shaft locking lever | 121590 | POA | 1 | 0 |
|
|
26 | Anti - theft deviceFor US and SA | 129115 | POA | 1 | 0 |
|
|
26 | Anti - theft deviceNot for US and SA | 129116 | POA | 1 | 0 |
|
|
27 | Screw | 121611 | POA | 1 | 0 |
|
|
28 | Washer | 10519401 | POA | 2 | 0 |
|
|
29 | Dado autobloccante | 12574221 | POA | 2 | 0 |
|
|
30 | Hub cover | 123098 | POA | 1 | 0 |
|
|
31 | Horn retaning plate | 123099 | POA | 1 | 0 |
|
|
32 | Lower jointIn alternative use no 108362 | 103343 | POA | 1 | 0 |
|
|
33 | Assembly for lower joint | 105032 | POA | 1 | 0 |
|
|
34 | Guide pipe | 116484 | POA | 1 | 0 |
|
|
35 | Lower steering shaft | 108557 | 178.65 | 1 | 0 |
|
|
36 | Adjusting nut | 106870 | 12.50 | 1 | 0 |
|
|
37 | Right tie rod | 123382 | POA | 1 | 0 |
|
|
38 | Left tie rod | 123383 | POA | 1 | 0 |
|
|
39 | Screw | 10902121 | POA | 4 | 0 |
|
|
40 | Nut | 15896211 | POA | 4 | 0 |
|
|
41 | Washer | 106850 | 0.35 | 4 | 0 |
|
|
42 | Right bracket | 120990 | POA | 1 | 0 |
|
|
43 | Left bracket | 120991 | POA | 1 | 0 |
|
|
44 | Safety plate | 124826 | POA | 2 | 0 |
|
|
45 | Screw | 10902121 | POA | 2 | 0 |
|
|
46 | Nut | 15896211 | POA | 2 | 0 |
|
|
47 | Washer | 106850 | 0.35 | 2 | 0 |
|
|
48 | Screw | 16043221 | POA | 2 | 0 |
|
|
49 | Nut | 16100811 | POA | 2 | 0 |
|
|
50 | Washer | 106852 | 0.36 | 2 | 0 |
|
|
51 | Steering column support | 136024 | POA | 1 | 0 |
|
|
52 | Upper steering shaftAfter exhaustion use no. 136028 | 136951 | POA | 1 | 0 |
|
|
53 | Bearing | 134061 | POA | 2 | 0 |
|
|
54 | Seeqer ring | 11066876 | POA | 1 | 0 |
|
|
55 | Shim, thickness 1,3 mm. | 134073 | POA | 1 | 0 |
|
|
55 | Shim, thickness 1,1 mm. | 134071 | POA | 1 | 0 |
|
|
55 | Shim, thickness 1,2 mm. | 134072 | POA | 1 | 0 |
|
|
55 | Shim, thickness 1,4 mm. | 134074 | POA | 1 | 0 |
|
|
55 | Shim, thickness 1 mm.Possible mounting | 134070 | POA | 1 | 0 |
|
|
56 | Seeger ring | 11066076 | POA | 2 | 0 |
|
|
57 | Shim, thickness 1,1 mm. | 134066 | POA | 1 | 0 |
|
|
57 | Shim, thickness 1,3 mm. | 134068 | POA | 1 | 0 |
|
|
57 | Shim, thickness 1 mm.Possible mounting | 134065 | POA | 1 | 0 |
|
|
57 | Shim, thickness 1,2 mm. | 134067 | POA | 1 | 0 |
|
|
57 | Shim, thickness 1,4 mm. | 134069 | POA | 1 | 0 |
|
|
58 | Steering box extension | 123517 | POA | 1 | 0 |
|
|
59 | Screw | 125518 | POA | 1 | 0 |
|
|
60 | Nut | 125519 | POA | 1 | 0 |
|
|
61 | Washer | 12601279 | POA | 2 | 0 |
|
|
62 | Extension support | 123516 | POA | 1 | 0 |
|
|
63 | Nut | 12574211 | POA | 2 | 0 |
|
|
64 | Washer | 10519401 | POA | 2 | 0 |
|
|
65 | Pad | 103549 | POA | 2 | 0 |
|
|
66 | Bushing | 103550 | POA | 2 | 0 |
|
|
67 | Washer | 12640601 | POA | 4 | 0 |
|
|
68 | Screw | 10902721 | POA | 2 | 0 |
|
|
69 | Washer | 106850 | 0.35 | 2 | 0 |
|
|
70 | Caged nut | 60659100 | POA | 2 | 0 |
|
|
71 | Ball | 103297 | POA | 1 | 0 |
|
|
72 | Bush | 103370 | POA | 1 | 0 |
|
|
73 | Flange | 103292 | POA | 2 | 0 |
|
|
74 | Upper joint | 112572 | POA | 1 | 0 |
|
|
75 | Taper pin | 112573 | POA | 1 | 0 |
|
|
76 | Spacer | 112571 | POA | 1 | 0 |
|
|
77 | Fair-lead | 112466 | POA | 1 | 0 |
|
