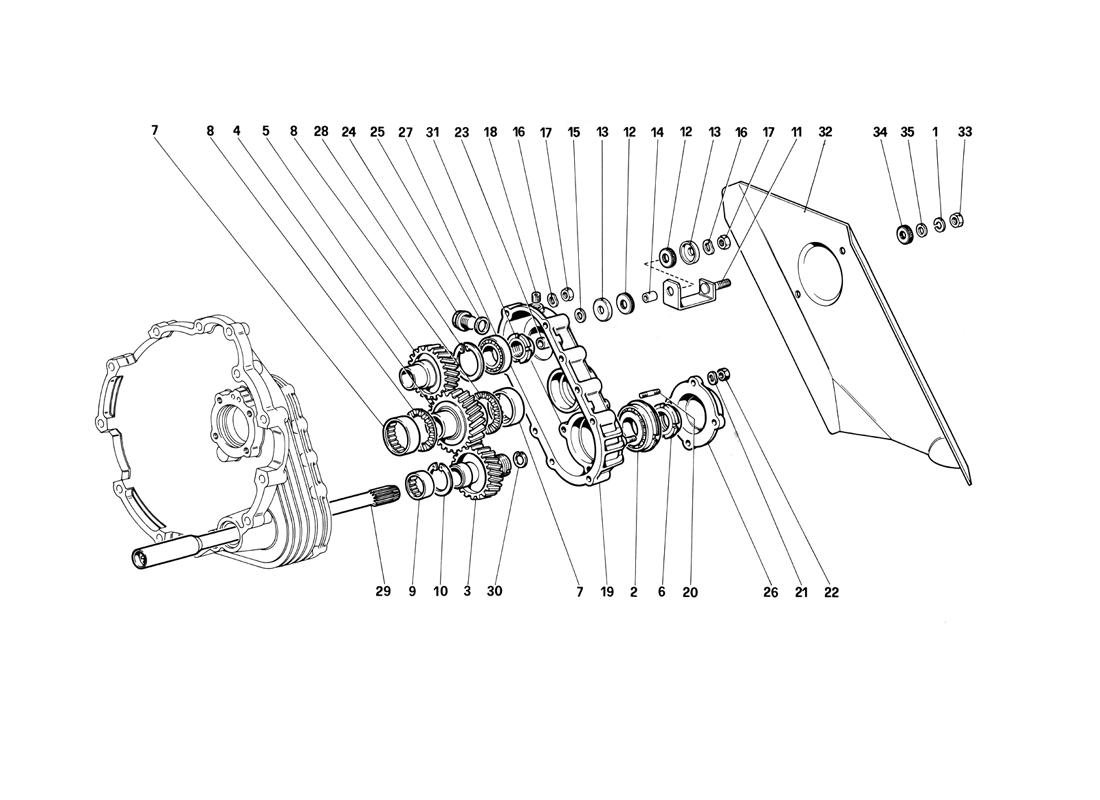

Ferrari / Testarossa (1990) / 030 - Gearbox Transmission
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Spring washer | 106850 | 0.35 | 3 | 0 |
|
|
| 2 | BearingAfter exhaustion use no. 126223 | 116063 | POA | 1 | 0 |
|
|
| 3 | Driven gear For US and SA - Until car no. 76473 | 125264 | POA | 1 | 0 |
|
|
| 3 | Driven gearFor C8 and CAT. | 137626 | POA | 1 | 0 |
|
|
| 3 | Driven gearFor US and SA - Starting from car no. 76474 | 137629 | POA | 1 | 0 |
|
|
| 3 | Driven gearFor C7 | 124502 | POA | 1 | 0 |
|
|
| 3 | Driven gearStarting from car no. 76474 | 136327 | POA | 1 | 0 |
|
|
| 3 | Driven gearUntil no. 76473 | 125264 | POA | 1 | 0 |
|
|
| 4 | Intermediate gearFor US and SA - Until car no. 76473 | 125263 | POA | 1 | 0 |
|
|
| 4 | Intermediate gearFor US and SA - Starting from car no. 76474 | 137628 | POA | 1 | 0 |
|
|
| 4 | Intermediate gearStarting from car no. 76474 | 136326 | POA | 1 | 0 |
|
|
| 4 | Intermediate gear | 137625 | POA | 1 | 0 |
|
|
| 4 | Intermediate gearFor C7 | 124501 | POA | 1 | 0 |
|
|
| 4 | Intermediate gearUntil car no. 76473 | 125263 | POA | 1 | 0 |
|
|
| 5 | Drive gearFor US and SA - Until car.no. 76473 | 125262 | POA | 1 | 0 |
|
|
| 5 | Drive gearFor C8 starting from car no. 80446 - For CAT. | 139210 | POA | 1 | 0 |
|
|
| 5 | Drive gearStarting from car no. 80177 | 139208 | POA | 1 | 0 |
|
|
| 5 | Drive gearForC7 | 124500 | POA | 1 | 0 |
|
|
| 5 | Drive gearStarting from car no. 80095 | 138384 | POA | 1 | 0 |
|
|
| 5 | Drive gearUntil car no. 76473 | 125262 | POA | 1 | 0 |
|
|
| 5 | Drive gear For US and SA - Starting from car no. 76474 to car no. 80176 | 137627 | POA | 1 | 0 |
|
|
| 5 | Drive gearFor C8 until car no. 80445 | 137622 | POA | 1 | 0 |
|
|
| 5 | Drive gearStarting from car no. 76474 - to car no. 80094 | 136325 | POA | 1 | 0 |
|
|
| 6 | Ring nut | 100729 | POA | 1 | 0 |
|
|
| 7 | Roller bearing | 104840 | 46.10 | 2 | 0 |
|
|
| 8 | Axial bearing | 104841 | 7.52 | 2 | 0 |
|
|
| 9 | Roller bearing | 103095 | POA | 1 | 0 |
|
|
| 10 | Lock ring | 103096 | POA | 1 | 0 |
|
|
| 11 | Bracket | 128500 | POA | 3 | 0 |
|
|
| 12 | Rubber busching | 107978 | 10.20 | 6 | 0 |
|
|
| 13 | Cup | 107979 | 11.95 | 6 | 0 |
|
|
| 14 | Distance tube | 107980 | 6.19 | 3 | 0 |
|
|
| 15 | Spacer | 124801 | POA | 3 | 0 |
|
|
| 16 | Washer | 12601371 | POA | 10 | 0 |
|
|
| 17 | Nut | 16100821 | POA | 10 | 0 |
|
|
| 18 | Plug | 10269450 | POA | 1 | 0 |
|
|
| 19 | Clutch housing cover | 113114 | POA | 1 | 0 |
|
|
| 20 | Stud | 13543321 | POA | 4 | 0 |
|
|
| 21 | Washer | 12601371 | POA | 4 | 0 |
|
|
| 22 | Nut | 16100821 | POA | 4 | 0 |
|
|
| 23 | Oil recovery pipe | 109336 | POA | 1 | 0 |
|
|
| 24 | Oil filler plug | 10275001 | POA | 1 | 0 |
|
|
| 25 | Gasket | 10263460 | POA | 1 | 0 |
|
|
| 26 | Small cover | 102808 | POA | 1 | 0 |
|
|
| 27 | Bearing | 112981 | POA | 1 | 0 |
|
|
| 28 | Seeger ring | 11061076 | POA | 1 | 0 |
|
|
| 29 | Propeller shaft | 109343 | POA | 1 | 0 |
|
|
| 30 | Lock ring | 11058275 | POA | 1 | 0 |
|
|
| 31 | Ring nut | 125500 | POA | 1 | 0 |
|
|
| 32 | Protection plateIn alternative use no. 139470 | 128499 | POA | 1 | 0 |
|
|
| 33 | Nut | 15896211 | POA | 3 | 0 |
|
|
| 34 | Insulating washerWithout Amianthus | 146712 | POA | 3 | 0 |
|
|
| 34 | Insulating washerWith Amianthus | 105924 | POA | 3 | 0 |
|
|
| 35 | Washer | 12643701 | POA | 3 | 0 |
|
