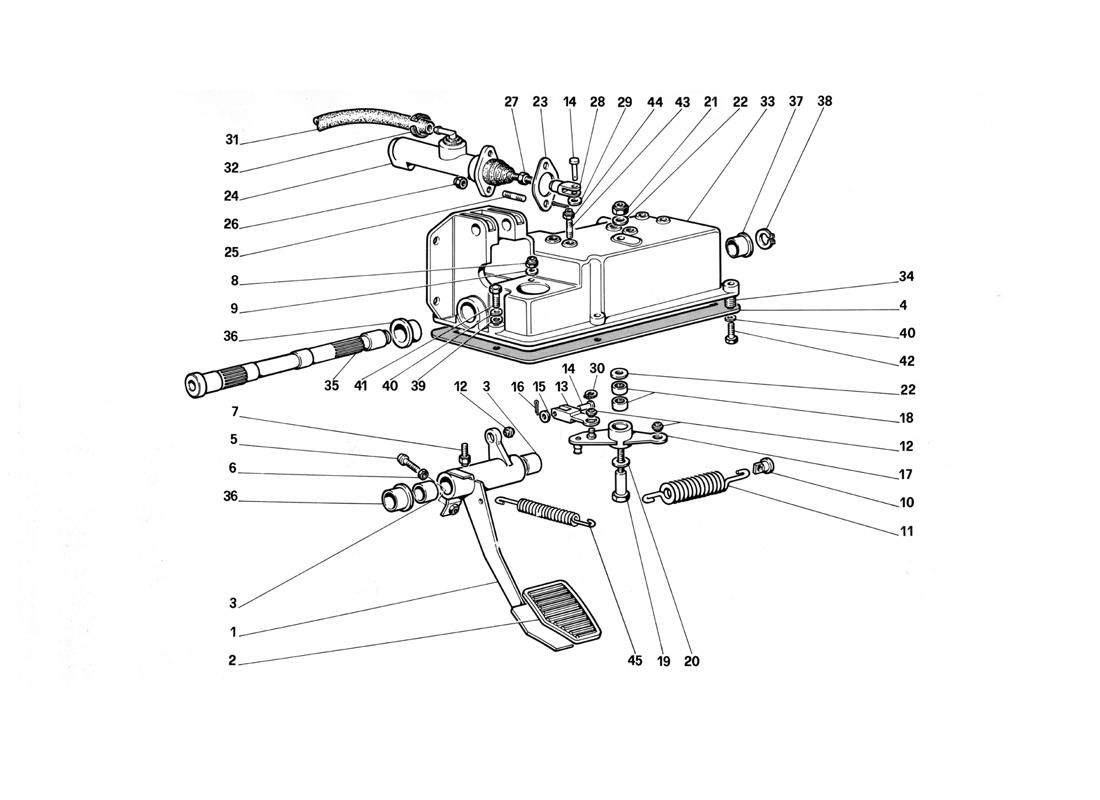

Ferrari / Testarossa (1990) / 029 - Clutch Release Control
Go to order form
Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
---|---|---|---|---|---|---|---|
1 | Clutch pedal | 121230 | POA | 1 | 0 |
|
|
2 | Pedal cover | 106949 | 25.83 | 1 | 0 |
|
|
3 | Bush | 103163 | POA | 2 | 0 |
|
|
4 | Gasket | 119331 | POA | 1 | 0 |
|
|
5 | Stop push rod | 123961 | POA | 1 | 0 |
|
|
6 | Nut | 16102311 | POA | 1 | 0 |
|
|
7 | Stop push rod | 114825 | POA | 1 | 0 |
|
|
8 | Nut | 16100821 | POA | 1 | 0 |
|
|
9 | Washer | 12601371 | POA | 1 | 0 |
|
|
10 | Spring retaining pin | 114828 | POA | 1 | 0 |
|
|
11 | Service spring | 114826 | POA | 1 | 0 |
|
|
12 | Ball joint | 109407 | POA | 2 | 0 |
|
|
13 | Fork | 121209 | POA | 1 | 0 |
|
|
14 | Pin | 10050810 | POA | 2 | 0 |
|
|
15 | Washer | 10519601 | 0.33 | 1 | 0 |
|
|
16 | Split pin | 10734201 | POA | 2 | 0 |
|
|
17 | Relay lever | 121233 | POA | 1 | 0 |
|
|
18 | Roller cage | 115430 | POA | 2 | 0 |
|
|
19 | Pin for relay lever | 114830 | POA | 1 | 0 |
|
|
20 | Shim | 112126 | POA | 1 | 0 |
|
|
21 | Selflocking nut | 16105121 | POA | 1 | 0 |
|
|
22 | Washer | 113500 | POA | 2 | 0 |
|
|
23 | Spacer | 124469 | POA | 1 | 0 |
|
|
24 | Clutch master cylinder | 123416 | POA | 1 | 0 |
|
|
25 | Stud | 12354521 | POA | 2 | 0 |
|
|
26 | Nut | 16104111 | POA | 2 | 0 |
|
|
27 | Locknut | 16102311 | POA | 1 | 0 |
|
|
28 | Fork | 10007871 | POA | 1 | 0 |
|
|
29 | Washer | 12642701 | POA | 1 | 0 |
|
|
30 | Seeger ring | 11065676 | POA | 1 | 0 |
|
|
31 | Feed pipe for clutch master cylinder | 125284 | POA | 1 | 0 |
|
|
32 | Clamp | 12179190 | POA | 2 | 0 |
|
|
33 | Pedal support | 123247 | POA | 1 | 0 |
|
|
34 | Threaded bush | 124777 | POA | 2 | 0 |
|
|
35 | Pedals supporting pin | 112152 | POA | 1 | 0 |
|
|
36 | Bush | 124687 | POA | 2 | 0 |
|
|
37 | Bush | 124686 | POA | 1 | 0 |
|
|
38 | Spring ring | 11066676 | POA | 1 | 0 |
|
|
39 | Washer | 10519620 | POA | 3 | 0 |
|
|
40 | Washer | 106852 | 0.36 | 5 | 0 |
|
|
41 | Screw | 16043821 | POA | 3 | 0 |
|
|
42 | Screw | 16043421 | POA | 2 | 0 |
|
|
43 | Stud securing windshield wiper motor bracket | 11500121 | POA | 4 | 0 |
|
|
44 | Nut | 12574221 | POA | 4 | 0 |
|
|
45 | Pedal return spring | 141531 | POA | 1 | 0 |
|
