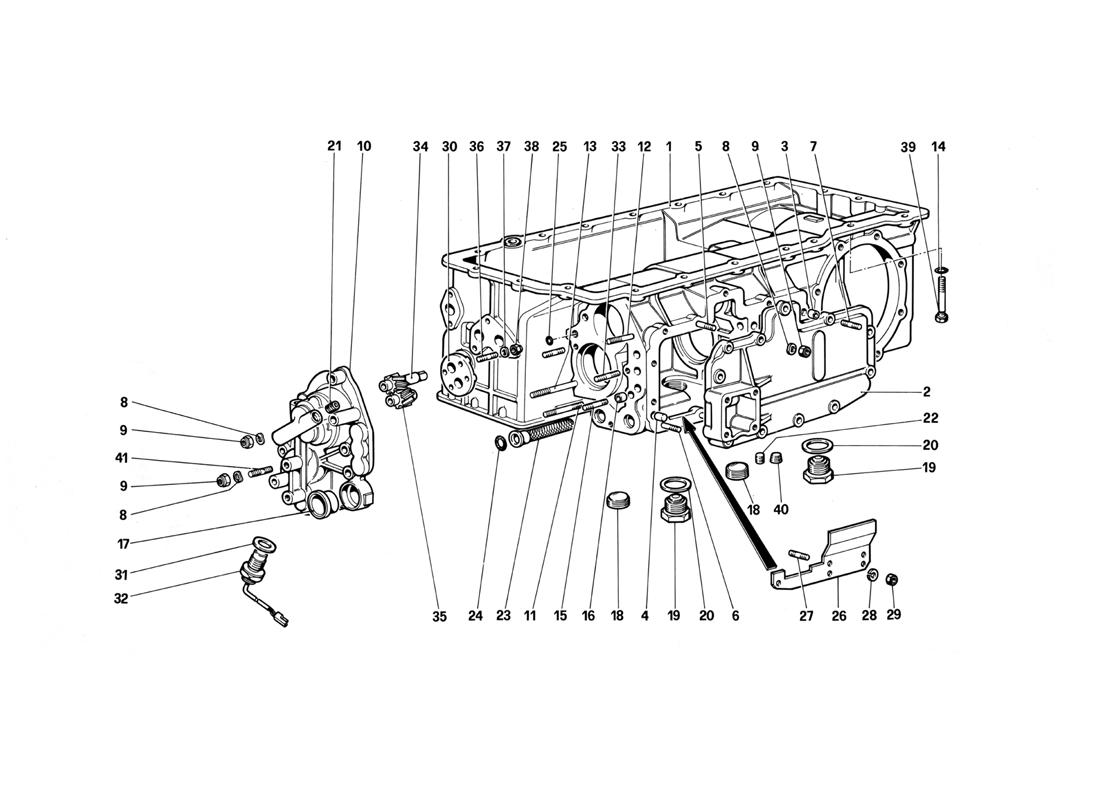

Ferrari / Testarossa (1987) / 031 - Gearbox
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | GearboxWith complete gearbox | 123011 | POA | 1 | 0 |
|
|
| 2 | Gearbox casing side cover | 107450 | POA | 1 | 0 |
|
|
| 3 | Dowel | 100041 | POA | 1 | 0 |
|
|
| 4 | Dowel | 10839810 | POA | 1 | 0 |
|
|
| 5 | Long stud | 13543521 | POA | 7 | 0 |
|
|
| 6 | Short stud | 13543321 | POA | 4 | 0 |
|
|
| 7 | Stud on dowel | 13543621 | POA | 1 | 0 |
|
|
| 8 | Washer | 12601371 | POA | 23 | 0 |
|
|
| 9 | Nut | 16100821 | POA | 23 | 0 |
|
|
| 10 | Front cover | 117790 | POA | 1 | 0 |
|
|
| 11 | Stud | 13544421 | POA | 1 | 0 |
|
|
| 12 | Stud | 13544221 | POA | 1 | 0 |
|
|
| 13 | Stud | 13970921 | POA | 1 | 0 |
|
|
| 13 | StudFor US version | 13970521 | POA | 1 | 0 |
|
|
| 14 | Seal ring | 103039 | POA | 1 | 0 |
|
|
| 15 | Stud | 13543821 | POA | 2 | 0 |
|
|
| 16 | Dowel | 100041 | POA | 2 | 0 |
|
|
| 17 | Bushing on gearbox control rod through cover | 103188 | POA | 1 | 0 |
|
|
| 18 | Plug for hole | 10270050 | POA | 2 | 0 |
|
|
| 19 | Gearbox and differential oil drain plug | 100826 | POA | 2 | 0 |
|
|
| 20 | Gasket | 10265160 | POA | 2 | 0 |
|
|
| 21 | Plug | 10269450 | POA | 3 | 0 |
|
|
| 22 | Plug closing hole for gearbox control rods | 104757 | 0.89 | 1 | 0 |
|
|
| 23 | Oil filter | 109726 | POA | 1 | 0 |
|
|
| 24 | Seal ring | 101033 | POA | 1 | 0 |
|
|
| 25 | Seal ring | 101030 | POA | 1 | 0 |
|
|
| 26 | Oil conveyor for 4th and 5th speeds | 109781 | POA | 1 | 0 |
|
|
| 27 | Stud | 13540721 | POA | 5 | 0 |
|
|
| 28 | Washer | 106850 | 0.35 | 5 | 0 |
|
|
| 29 | Nut | 15896221 | POA | 5 | 0 |
|
|
| 30 | Oil pump cover | 109717 | POA | 1 | 0 |
|
|
| 31 | Gasket | 10263460 | POA | 1 | 0 |
|
|
| 32 | Speedometer sending unit | 116987 | POA | 1 | 0 |
|
|
| 33 | Stud | 13543721 | POA | 4 | 0 |
|
|
| 34 | Drive gear | 109722 | POA | 1 | 0 |
|
|
| 35 | Driven gear | 109723 | POA | 1 | 0 |
|
|
| 36 | Stud | 13540921 | POA | 4 | 0 |
|
|
| 37 | Washer | 12601271 | POA | 4 | 0 |
|
|
| 38 | Nut | 10725911 | POA | 4 | 0 |
|
|
| 39 | Screw securing gearbox casing | 109997 | POA | 1 | 0 |
|
|
| 57 | Gearbox, complete | 126081 | POA | 1 | 0 |
|
