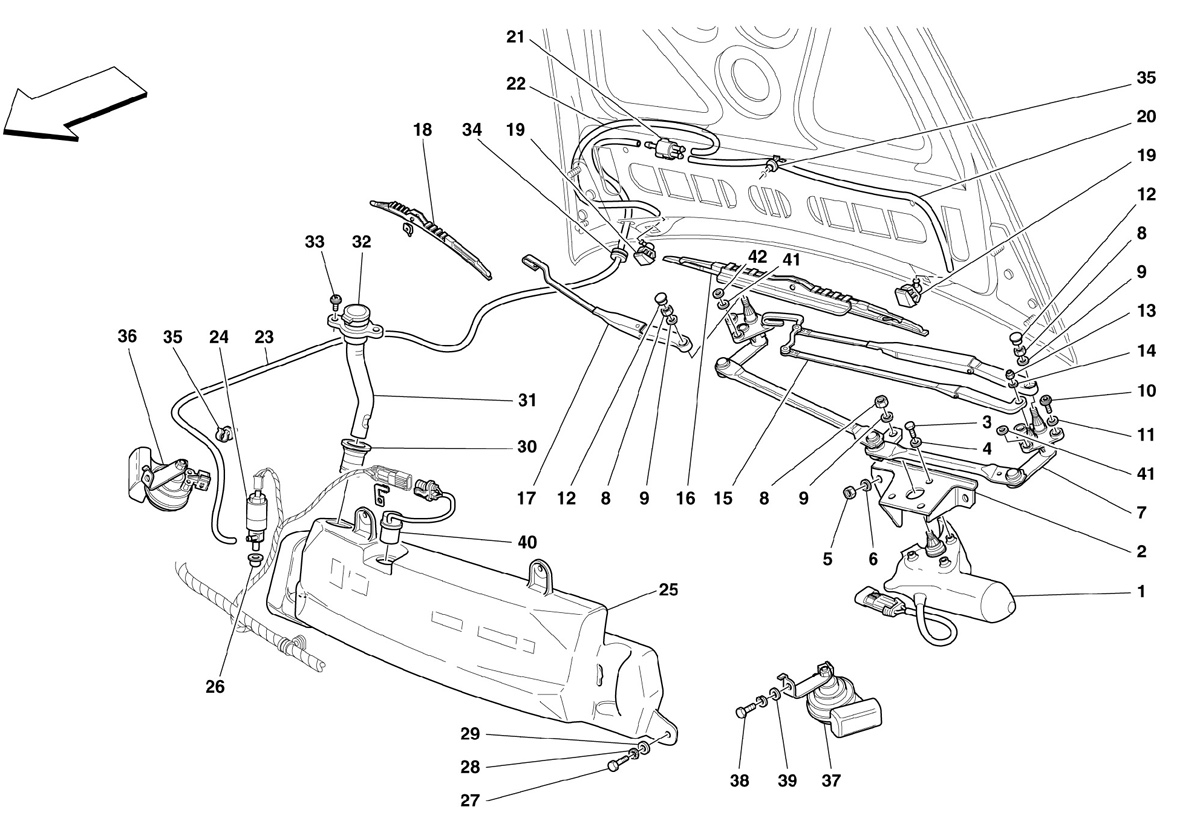

Ferrari / F430 (2005-2008) / 132 - Windshield - Glass Washer and Horns
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | WINDSHIELD WIPER MOTOR | 63780200 | POA | 1 | 0 |
|
|
| 2 | WINDSHIELD WIPER MOTOR FASTENING BRACKET | 173416 | POA | 1 | 0 |
|
|
| 3 | SCREW | 10902224 | POA | 3 | 0 |
|
|
| 4 | WASHER | 127494 | POA | 3 | 0 |
|
|
| 5 | NUT | 104030 | POA | 3 | 0 |
|
|
| 6 | WASHER | 14496524 | POA | 3 | 0 |
|
|
| 7 | COMPLETE WINDSHIELD WIPER LEVERAGE -Not for RHD- | 65409100 | POA | 1 | 0 |
|
|
| 7 | COMPLETE WINDSHIELD WIPER LEVERAGE -Valid for RHD- | 65849300 | POA | 1 | 0 |
|
|
| 8 | NUT | 16100814 | POA | 3 | 0 |
|
|
| 9 | WASHER | 12601374 | POA | 3 | 0 |
|
|
| 10 | SCREW | 64830600 | POA | 6 | 0 |
|
|
| 11 | WASHER | 12644477 | POA | 6 | 0 |
|
|
| 12 | SMALL COVER | 65190900 | POA | 2 | 0 |
|
|
| 13 | NUT | 15896472 | POA | 1 | 0 |
|
|
| 14 | WASHER | 12601174 | POA | 1 | 0 |
|
|
| 14 | WASHER -Not as spare part- -Replaced by 12601174- | 12601176 | POA | 1 | 0 |
|
|
| 15 | DRIVER SIDE WINDSHIELD WIPER ARM -Not for RHD- | 65409200 | POA | 1 | 0 |
|
|
| 15 | DRIVER SIDE WINDSHIELD WIPER ARM -Valid for RHD- | 65849400 | POA | 1 | 0 |
|
|
| 16 | DRIVER SIDE WIPER BRUSH | 63776100 | POA | 1 | 0 |
|
|
| 17 | PASSENGER SIDE WINDSHIELD WIPER ARM -Not for RHD- | 65409300 | POA | 1 | 0 |
|
|
| 17 | PASSENGER SIDE WINDSHIELD WIPER ARM -Valid for RHD- | 65849500 | POA | 1 | 0 |
|
|
| 18 | PASSENGER SIDE WIPER BRUSH | 65409400 | POA | 1 | 0 |
|
|
| 19 | JET FOR WINDOW WASHING | 65191000 | POA | 2 | 0 |
|
|
| 20 | RUBBER HOSE | 65362600 | POA | 1 | 0 |
|
|
| 21 | NONRETURN VALVE | 61648100 | POA | 1 | 0 |
|
|
| 22 | RUBBER HOSE | 65362500 | POA | 1 | 0 |
|
|
| 23 | RUBBER HOSE FROM PUMP TO VALVE | 65362400 | POA | 1 | 0 |
|
|
| 24 | PER PUMP | 65358700 | POA | 1 | 0 |
|
|
| 25 | NDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER | 67895900 | POA | 1 | 0 |
|
|
| 26 | GASKET | 65775100 | POA | 1 | 0 |
|
|
| 27 | SCREW | 10902414 | POA | 4 | 0 |
|
|
| 28 | WASHER -Not as spare part- -Replaced by 12601274- | 10615474 | POA | 4 | 0 |
|
|
| 28 | WASHER | 12601274 | POA | 4 | 0 |
|
|
| 29 | WASHER | 10523424 | POA | 4 | 0 |
|
|
| 30 | GASKET | 65581700 | POA | 1 | 0 |
|
|
| 31 | PIPE | 65581800 | POA | 1 | 0 |
|
|
| 32 | PLUG | 65374000 | POA | 1 | 0 |
|
|
| 33 | SCREW | 62940900 | POA | 2 | 0 |
|
|
| 34 | GASKET | 10396280 | POA | 2 | 0 |
|
|
| 35 | FIXING CLIP | 65759400 | POA | 2 | 0 |
|
|
| 36 | COMPLETE R.H. HORN | 199231 | POA | 1 | 0 |
|
|
| 37 | COMPLETE L.H. HORN | 199232 | POA | 1 | 0 |
|
|
| 38 | SCREW | 10902324 | POA | 2 | 0 |
|
|
| 39 | WASHER | 12601274 | POA | 2 | 0 |
|
|
| 40 | LIQUID SENSOR | 65758700 | POA | 1 | 0 |
|
|
| 41 | BEVEL WASHER | 65546300 | POA | 2 | 0 |
|
|
| 42 | WASHER | 12646601 | POA | 1 | 0 |
|
