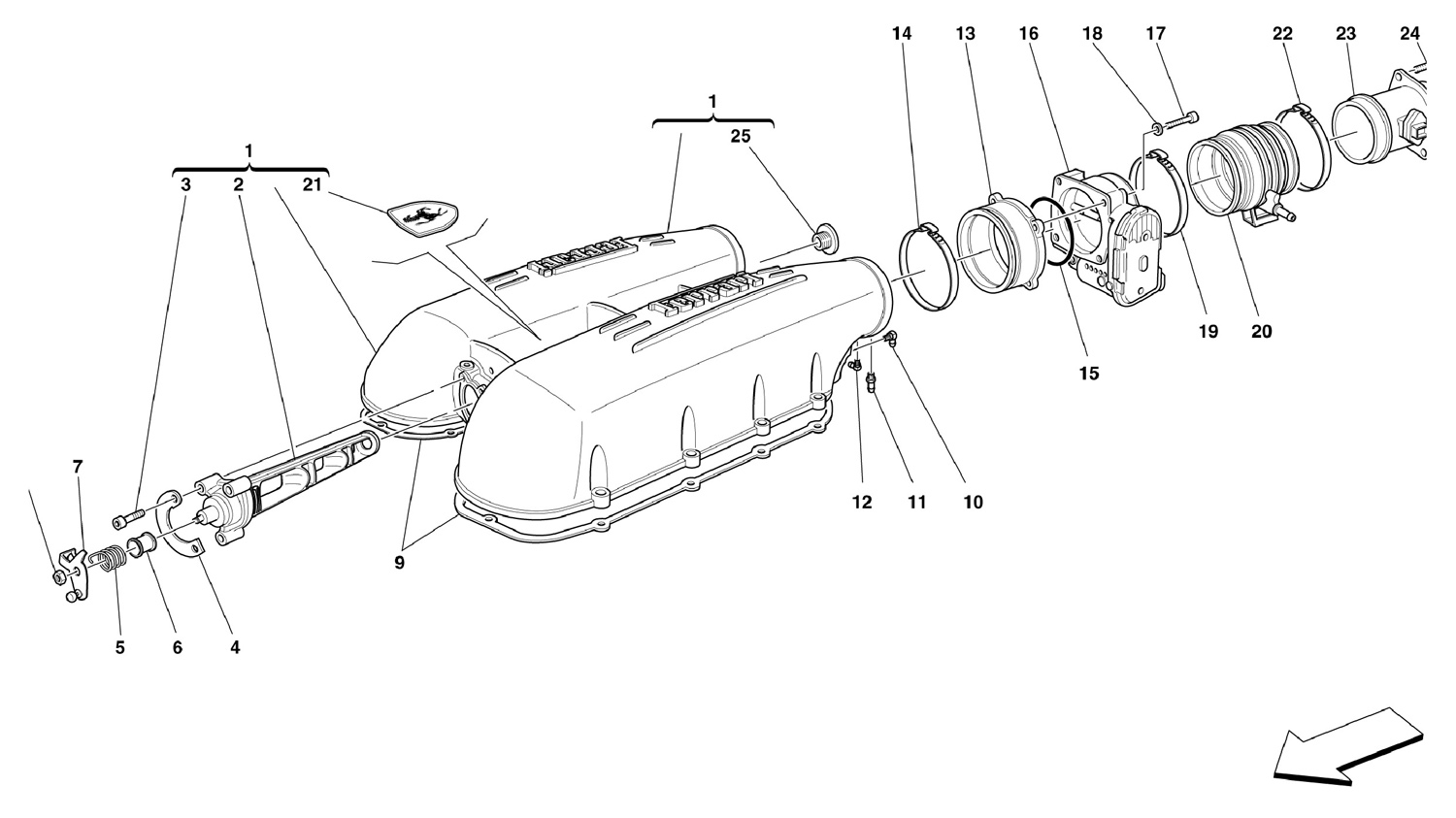

Ferrari / F430 (2005-2008) / 015 - Air Intake Manifold Cover
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid till Ass. Nr. 55078- | 219461 | POA | 1 | 0 |
|
|
| 1 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from Ass. Nr. 55079 and valid till engine Nr. 99607- -Valid till M.Y. 06- | 214959 | POA | 1 | 0 |
|
|
| 1 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Not as spare part- -Replaced by 214959- | 214959 | POA | 1 | 0 |
|
|
| 1 | SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 214959 | POA | 1 | 0 |
|
|
| 1 | SUCTION MANIFOLD COVER -Optional- -With carbonium aesthetic cover- | 219461 | POA | 1 | 0 |
|
|
| 1 | SUCTION MANIFOLD COVER -Optional- -Carbon version- | 238253 | POA | 1 | 0 |
|
|
| 2 | ROLLING DRUM -Valid till engine Nr. 99607- -Valid till M.Y. 06- -Cpl. ball bearing- | 215068 | POA | 1 | 0 |
|
|
| 2 | ROLLING DRUM -Valid from engine Nr. 99608- -Valid from M.Y. 06- -For die-cast drum- | 220668 | POA | 1 | 0 |
|
|
| 3 | SCREW | 14305624 | POA | 3 | 0 |
|
|
| 4 | SAFETY PLATE | 204873 | POA | 1 | 0 |
|
|
| 5 | SPRING | 197761 | POA | 1 | 0 |
|
|
| 6 | BUSHING | 205123 | POA | 1 | 0 |
|
|
| 7 | DRUM CONTROL LEVER -Valid till Ass. Nr. 55078- | 203401 | POA | 1 | 0 |
|
|
| 7 | DRUM CONTROL LEVER -Valid from Ass. Nr. 55079- | 203401 | POA | 1 | 0 |
|
|
| 8 | NUT -Valid till engine Nr. 99607- -Valid till M.Y. 06- | 177613 | POA | 1 | 0 |
|
|
| 8 | NUT -Valid from engine Nr. 99608- -Valid from M.Y. 06- | 212945 | POA | 1 | 0 |
|
|
| 9 | GASKET -Not as spare part now- -Replaced by 217471- | 217471 | POA | 2 | 0 |
|
|
| 9 | GASKET | 217471 | POA | 2 | 0 |
|
|
| 10 | UNION | 174818 | POA | 2 | 0 |
|
|
| 11 | UNION | 210194 | POA | 2 | 0 |
|
|
| 12 | UNION | 128016 | POA | 2 | 0 |
|
|
| 13 | SPACER | 195206 | POA | 2 | 0 |
|
|
| 14 | CLAMP | 190151 | POA | 2 | 0 |
|
|
| 15 | O.R. GASKET | 150302 | POA | 2 | 0 |
|
|
| 16 | THROTTLE HOLDER | 179912 | POA | 2 | 0 |
|
|
| 17 | SCREW | 14305924 | POA | 8 | 0 |
|
|
| 18 | SHER | 12639724 | POA | 8 | 0 |
|
|
| 19 | CLAMP | 180046 | POA | 2 | 0 |
|
|
| 20 | R.H. SLEEVE -Not for USA and CDN- | 205092 | POA | 1 | 0 |
|
|
| 20 | R.H. SLEEVE -Valid for USA and CDN- | 201570 | POA | 1 | 0 |
|
|
| 20 | L.H. SLEEVE -Not for USA and CDN- | 205095 | POA | 1 | 0 |
|
|
| 20 | L.H. SLEEVE -Valid for USA and CDN- | 201572 | POA | 1 | 0 |
|
|
| 21 | AESTHETIC SMALL COVER -Standard- -Aluminium- | 214932 | POA | 1 | 0 |
|
|
| 21 | AESTHETIC SMALL COVER -Optional- -Carbonium- | 218327 | POA | 1 | 0 |
|
|
| 22 | CLAMP | 177981 | POA | 2 | 0 |
|
|
| 23 | AIR FLOW METER | 181120 | POA | 2 | 0 |
|
|
| 24 | SCREW | 16285127 | POA | 2 | 0 |
|
|
| 25 | PLUG | 210157 | POA | 1 | 0 |
|
