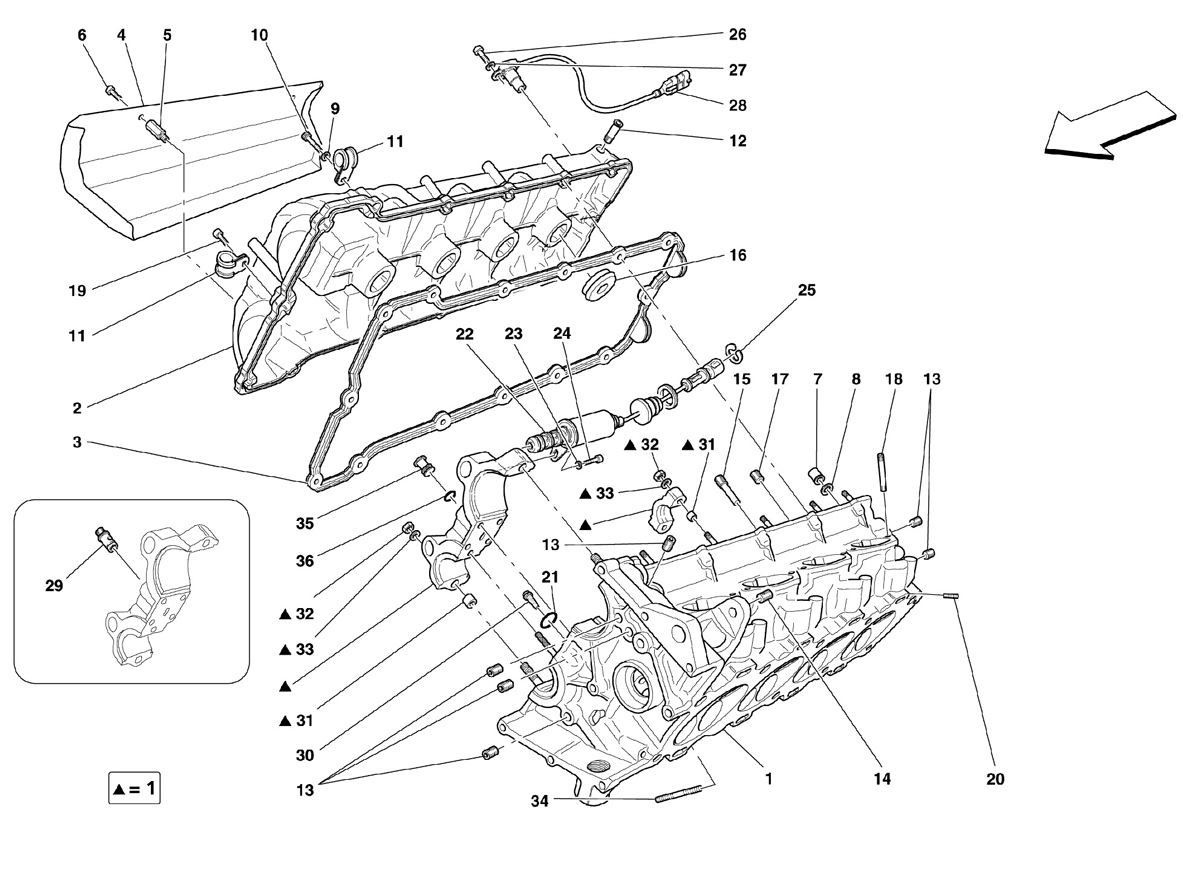

Ferrari / F430 (2005-2008) / 003 - Cylinder Head - Right
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | COMPLETE R.H. HEAD -Valid till engine No. 97780- | 206796 | POA | 1 | 0 |
|
|
| 1 | COMPLETE R.H. HEAD -Valid from engine Nr. 97781 and valid till engine Nr. 99607- -Valid till M.Y.06- | 219172 | POA | 1 | 0 |
|
|
| 1 | COMPLETE R.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- | 218552 | POA | 1 | 0 |
|
|
| 1 | COMPLETE R.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -With valve seat Como 12- -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 218552- | 235661 | POA | 1 | 0 |
|
|
| 2 | R.H. CYLINDERS HEAD COVER -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 197575 | POA | 1 | 0 |
|
|
| 2 | R.H. CYLINDERS HEAD COVER -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 221342 | POA | 1 | 0 |
|
|
| 3 | RH VALVE COVER GASKET | 198927 | POA | 1 | 0 |
|
|
| 4 | ANTI-HEAT SHIELD | 229163 | POA | 1 | 0 |
|
|
| 5 | STUD | 212466 | POA | 1 | 0 |
|
|
| 6 | SCREW | 14305724 | POA | 1 | 0 |
|
|
| 7 | NUT | 183524 | POA | 10 | 0 |
|
|
| 8 | SHER | 151117 | POA | 10 | 0 |
|
|
| 9 | SHER | 11197774 | POA | 14 | 0 |
|
|
| 10 | SCREW | 156834 | POA | 14 | 0 |
|
|
| 11 | BRACKET WITH SHEATH | 10441490 | POA | 2 | 0 |
|
|
| 12 | THREADED UNION | 124342 | POA | 1 | 0 |
|
|
| 13 | THREADED PLUG | 14326001 | POA | 6 | 0 |
|
|
| 14 | THREADED INSERT | 140135 | POA | 1 | 0 |
|
|
| 15 | THREADED PLUG | 183447 | POA | 4 | 0 |
|
|
| 16 | GASKET -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 187706 | POA | 4 | 0 |
|
|
| 16 | GASKET -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 223982 | POA | 4 | 0 |
|
|
| 17 | THREADED PLUG | 164400 | POA | 1 | 0 |
|
|
| 18 | STUD | 13541334 | POA | 8 | 0 |
|
|
| 19 | SCREW -Not as spare part- -Replaced by 233600- | 14305124 | POA | 1 | 0 |
|
|
| 19 | SCREW | 233600 | POA | 1 | 0 |
|
|
| 20 | THREADED PLUG | 199760 | POA | 4 | 0 |
|
|
| 21 | GASKET | 134233 | POA | 1 | 0 |
|
|
| 22 | VARIATOR CONTROL SOLENOID VALVE | 250646 | POA | 2 | 0 |
|
|
| 23 | SHER -Not as spare part- | 11197774 | POA | 1 | 0 |
|
|
| 24 | SCREW -Not as spare part- -Replaced by 231617- | 14433124 | POA | 1 | 0 |
|
|
| 24 | SCREW | 231617 | POA | 1 | 0 |
|
|
| 25 | FLEXIBLE RING | 11087376 | POA | 1 | 0 |
|
|
| 26 | SCREW | 14305224 | POA | 1 | 0 |
|
|
| 27 | SHER | 11197774 | POA | 1 | 0 |
|
|
| 28 | PHASE SENSOR -Not as spare part now- -Replaced by 219349- | 177673 | POA | 2 | 0 |
|
|
| 28 | PHASE SENSOR -Not as spare part now- -Replaced by 219864 and 219865- | 219349 | POA | 2 | 0 |
|
|
| 28 | R.H. INDUCTION SHAFT PHASE SENSOR | 219864 | POA | 1 | 0 |
|
|
| 28 | R.H. EXHAUST SHAFT PHASE SENSOR | 219865 | POA | 1 | 0 |
|
|
| 29 | OIL PRESSURE CHECK VALVE | 184681 | POA | 1 | 0 |
|
|
| 30 | OIL FILTER | 180266 | POA | 1 | 0 |
|
|
| 31 | CENTERING DOWEL | 102725 | POA | 22 | 0 |
|
|
| 32 | NUT | 15896214 | POA | 22 | 0 |
|
|
| 33 | SHER | 11197774 | POA | 22 | 0 |
|
|
| 34 | STUD | 211641 | POA | 8 | 0 |
|
|
| 35 | PLUG | 220239 | POA | 1 | 0 |
|
|
| 36 | GASKET | 220245 | POA | 1 | 0 |
|
