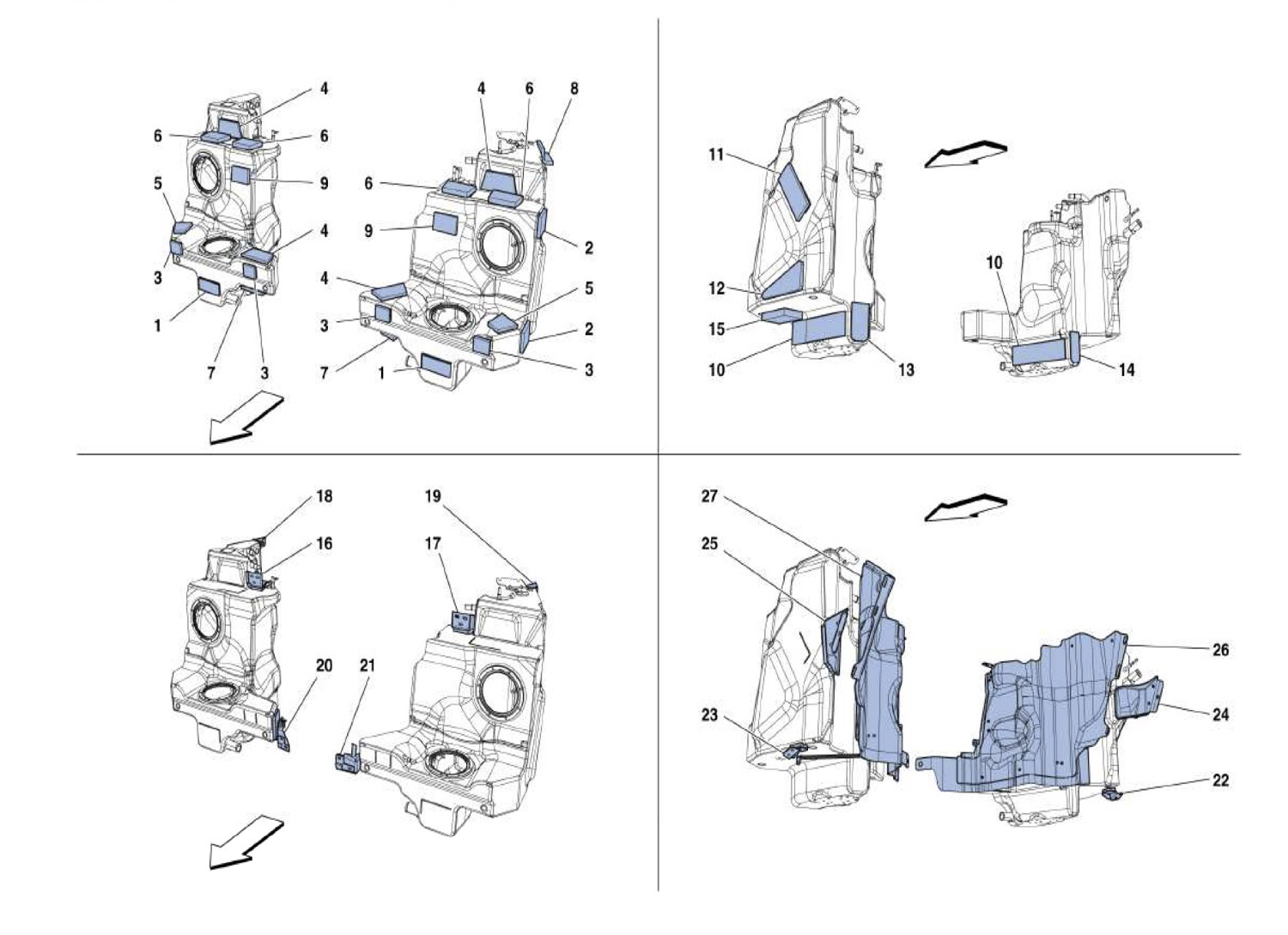

Ferrari / 488 GTB / 011 - Fuel Tanks and Shields
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | VIBRATION DAMPER PAD FOR TANKS -100 X 40 X 5- | 305859 | POA | 2 | 0 |
|
|
| 2 | VIBRATION DAMPER PAD FOR TANKS -70 X 60 X 10- | 305865 | POA | 4 | 0 |
|
|
| 3 | VIBRATION DAMPER PAD FOR TANKS -50 X 40 X 10- | 308386 | POA | 4 | 0 |
|
|
| 4 | VIBRATION DAMPER PAD FOR TANKS -120 X 55 X 10- | 316942 | POA | 4 | 0 |
|
|
| 5 | VIBRATION DAMPER PAD FOR TANKS -70 X 70 X 10- | 316943 | POA | 2 | 0 |
|
|
| 6 | VIBRATION DAMPER PAD FOR TANKS -100 X 70 X 15- | 316945 | POA | 4 | 0 |
|
|
| 7 | VIBRATION DAMPER PAD FOR TANKS -110 X 60 X 15- | 316947 | POA | 2 | 0 |
|
|
| 8 | VIBRATION DAMPER PAD FOR TANKS -120 X 70 X 10- | 308339 | POA | 2 | 0 |
|
|
| 9 | VIBRATION DAMPER PAD FOR TANKS -80 X 50 X 15- | 313310 | POA | 2 | 0 |
|
|
| 10 | VIBRATION DAMPER PAD FOR TANKS -260 X 65 X 5- | 305860 | POA | 4 | 0 |
|
|
| 11 | VIBRATION DAMPER PAD FOR TANKS -150 X 60 X 10- | 305866 | POA | 2 | 0 |
|
|
| 12 | LH VIBRATION DAMPER PAD FOR TANKS -Th. 10 mm- | 313313 | POA | 1 | 0 |
|
|
| 12 | RH VIBRATION DAMPER PAD FOR TANKS -Th. 10 mm- | 313312 | POA | 1 | 0 |
|
|
| 13 | VIBRATION DAMPER PAD FOR TANKS -100 X 55 X 10- | 313568 | POA | 1 | 0 |
|
|
| 14 | VIBRATION DAMPER PAD FOR TANKS -100 X 45 X 5- | 313569 | POA | 1 | 0 |
|
|
| 15 | VIBRATION DAMPER PAD FOR TANKS -120 X 70 X 20- | 316946 | POA | 2 | 0 |
|
|
| 16 | INNER RH UPPER TANK RETAINER | 317185 | POA | 1 | 0 |
|
|
| 17 | INNER LH UPPER TANK RETAINER | 317184 | POA | 1 | 0 |
|
|
| 18 | RH UPPER TANK RETAINER | 312974 | POA | 1 | 0 |
|
|
| 19 | LH UPPER TANK RETAINER | 312973 | POA | 1 | 0 |
|
|
| 20 | RH CENTRE TANK RETAINER | 313507 | POA | 1 | 0 |
|
|
| 21 | LH CENTRE TANK RETAINER | 313508 | POA | 1 | 0 |
|
|
| 22 | RH TANK RETAINER | 311187 | POA | 1 | 0 |
|
|
| 23 | LH TANK RETAINER | 311186 | POA | 1 | 0 |
|
|
| 24 | RH REAR TANK RETAINER | 313514 | POA | 1 | 0 |
|
|
| 25 | LH REAR TANK RETAINER | 313513 | POA | 1 | 0 |
|
|
| 26 | RH TANK HEAT INSULATION | 320229 | POA | 1 | 0 |
|
|
| 27 | LH TANK HEAT INSULATION | 320230 | POA | 1 | 0 |
|
