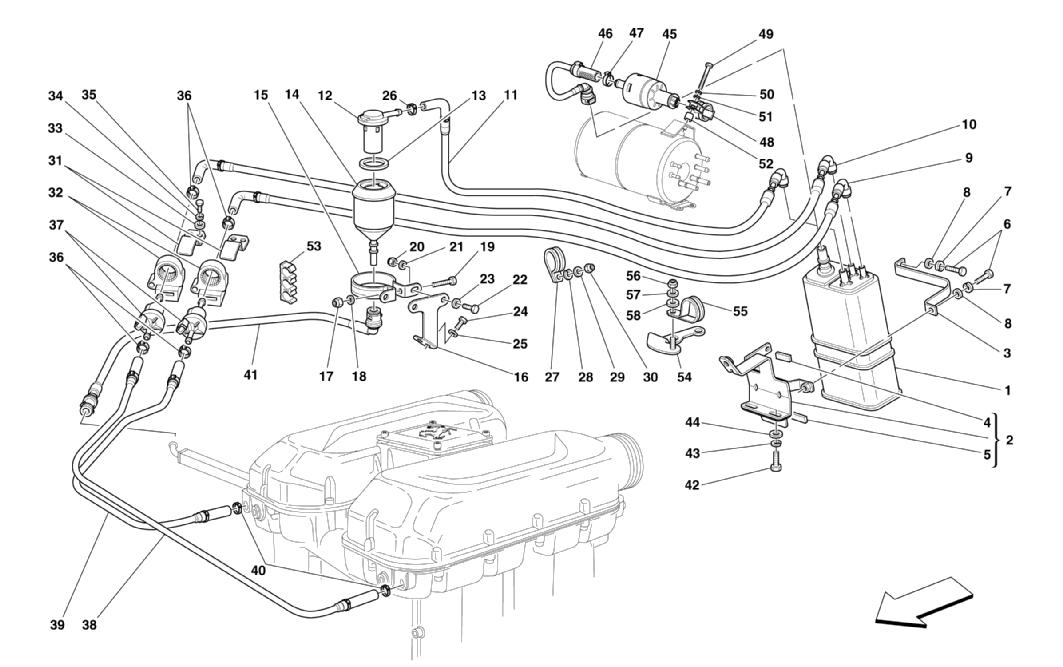

Ferrari / 360 Challenge Stradale / 013 - Antievaportion Device - Not US and CDN

Go to order form
Diagram # Name Part # Price Fitted
Quantity		 Quantity
Available		 Quantity Select
1 FUEL VAPOR FILTER 180132 454.05 1 3
2 DEWATERER FILTER FIXING BRACKET 178451 POA 1 0
3 BRACKET 178456 POA 1 0
4 RUBBER THICKNESS 178458 POA 1 0
5 RUBBER THICKNESS 178457 POA 1 0
6 SCREW 10902124 1.30 2 11
7 WASHER 127494 0.10 2 0
8 WASHER 12639724 0.06 2 8
9 PIPE FROM FILTER TO REAR VALVE 180376 POA 1 0
10 PIPE FROM FILTER TO FRONT VALVE 180375 POA 1 0
11 PIPE FROM FILTER TO MULTIFUNTIONAL VALVE 180374 POA 1 0
12 ANTI ROLL-OVER VALVE 180030 127.19 1 13
13 GASKET 195049 4.64 1 5
14 MULTIFUNTIONAL VALVE CONTAINER 175967 POA 1 0
15 BRACKET WITH SHEATH 176393 POA 1 0
16 BRACKET 176442 POA 1 0
17 NUT 102741 1.30 1 1556
18 WASHER 12639724 0.06 1 8
19 SCREW 10902834 POA 1 0
20 NUT 10720124 POA 2 0
21 WASHER 12644424 0.10 2 27
22 SCREW 10902024 0.98 2 20
23 WASHER 127494 0.10 2 0
24 SCREW 10902224 1.30 2 45
25 WASHER 12644424 0.10 2 27
26 SCREW COLLAR 13432070 0.79 1 2
27 BRACKET WITH SHEATH 10442290 0.73 1 6
28 WASHER 127494 0.10 2 0
29 WASHER 12644424 0.10 2 27
30 NUT 15896214 0.91 2 28
31 BRACKET 174708 POA 2 0
32 BUFFER FOR SUPPORT 174623 8.74 2 2
33 WASHER 12644424 0.10 2 27
34 WASHER 127494 0.10 2 0
35 SCREW 10979434 POA 2 0
36 SCREW COLLAR 13432070 0.79 4 2
37 ANTI-EVAPORATION VALVE 162412 95.22 2 1
38 PIPE TO ENGINE L.H. SIDE 180377 POA 1 0
39 PIPE TO ENGINE R.H. SIDE 180378 POA 1 0
40 SCREW COLLAR 13432070 0.79 2 2
41 PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR 180373 67.89 1 1
42 SCREW 10902224 1.30 2 45
43 WASHER 12639724 0.06 2 8
44 WASHER 127494 0.10 2 0
45 INTERCEPTION VALVE 179138 213.81 1 0
46 COMPLETE TUBE 180155 POA 1 0
47 COLLAR FOR SLEEVE 164015 11.19 1 2
48 BRACKET WITH SHEATH 181607 POA 1 0
49 SCREW 10903024 0.61 1 9
50 WASHER 127494 0.10 1 0
51 WASHER 12639724 0.06 1 8
52 SPACER 172613 POA 1 0
53 FLEXIBLE CLIP 145543 POA 1 0
54 BRACKET 180179 POA 1 0
55 BRACKET WITH SHEATH 10441990 1.30 1 0
56 NUT 15896214 0.91 1 28
57 WASHER 127494 0.10 1 0
58 WASHER 12644424 0.10 1 27
