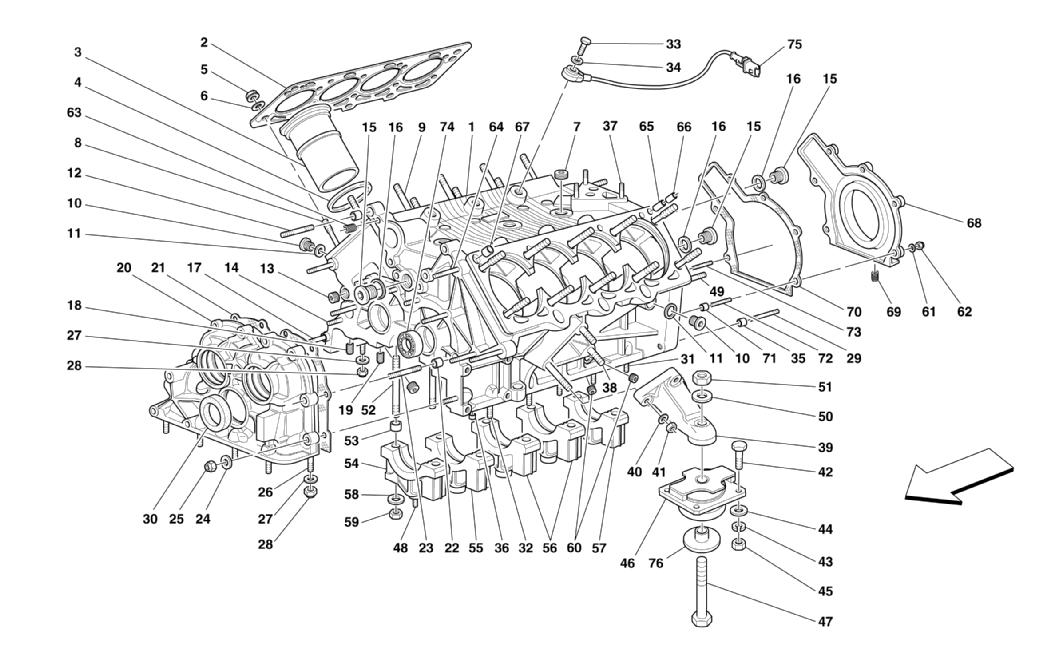

Ferrari / 360 Challenge Stradale / 001 - Crankcase

Go to order form
Diagram # Name Part # Price Fitted
Quantity		 Quantity
Available		 Quantity Select
N/A COMPLETE CRANKCASE 201697 POA 1 0
1 CRANKCASE-Not as spare part-With the complete crankcase 201217 POA 1 0
2 GASKET 174853 565.93 2 0
3 CYLINDERS LINER 136875 577.70 8 0
4 GASKET 136258 5.79 8 42
5 NUT 148093 22.93 20 0
6 WASHER-Crankcase central side 151117 1.21 12 30
6 WASHER-Crankcase front and rear side 176208 3.47 8 4
7 THREADED PLUG 14325540 9.52 3 1
8 STUD-Crankcase front and rear side 176148 11.19 8 4
9 STUD-Crankcase central side 148311 34.18 12 3
10 WATER OUTLET PLUG 200988 POA 2 0
11 GASKET 10280060 0.78 2 98
12 STUD 13544034 POA 1 0
13 THREADED PLUG 14325140 POA 1 0
14 STUD 13543424 1.95 5 7
15 THREADED PLUG 10275011 2.45 3 0
16 GASKET 10263460 0.99 3 0
17 STUD 13544024 0.70 1 0
18 THREADED INSERT 13525870 POA 3 0
19 THREADED INSERT 13525770 3.66 1 16
20 FRONT COVER-Not as spare part-With the complete crankcase 169754 POA 1 0
21 GASKET 153921 14.11 1 32
22 DOWEL 100041 7.13 2 8
23 STUD 13543624 3.45 1 14
24 WASHER 12601374 1.04 9 2478
25 NUT 101139 0.32 9 184
26 STUD 13543524 4.76 6 44
27 WASHER 12604474 1.04 18 8
28 NUT 101139 0.32 18 184
29 STUD 13547034 POA 4 0
30 GASKET 163985 38.16 1 98
31 STUD 13543524 4.76 8 44
32 STUD 13543624 3.45 4 14
33 SCREW 16043834 0.73 4 0
34 WASHER 11198074 0.61 4 21
35 CENTERING DOWEL 165351 POA 2 0
36 DOWEL 102725 1.37 2 10
37 STUD 13543524 4.76 3 44
38 STUD-Right side support 13547124 POA 2 0
38 STUD 13546624 0.97 4 3
39 ENGINE FIXING SUPPORT 183804 POA 2 0
40 WASHER 11190574 1.30 6 2
41 NUT 133988 1.37 6 0
42 SCREW 15970734 POA 8 0
43 WASHER 127497 0.37 8 1
44 WASHER 12646824 1.30 8 6
45 NUT 133988 1.37 8 0
46 FLEXIBLE PAD 190255 125.01 2 0
47 SCREW 11369634 33.35 2 0
48 STUD 13516624 POA 4 0
49 STUD 13547234 POA 2 0
50 WASHER 12601774 0.73 2 0
51 NUT 176573 2.04 2 0
52 STUD 180263 POA 10 0
53 CENTERING DOWEL 125317 POA 10 0
54 FRONT HAT-Not as spare part-With the complete crankcase 152158 POA 1 0
55 FRONT INTERMEDIATE HAT-Not as spare part-With the complete crankcase 152159 POA 1 0
56 INTERMEDIATE CENTRALAND REAR HAT-Not as spare part-With the complete crankcase 152098 POA 2 0
57 REAR HAT-Not as spare part-With the complete crankcase 152099 POA 1 0
58 WASHER 103842 9.9528 10 187
59 NUT 6103841 POA 10 0
60 THREADED PLUG 164400 POA 2 0
61 WASHER 12620474 POA 6 0
62 NUT 15896214 0.91 6 28
63 THREADED INSERT 13525870 POA 4 0
64 STUD 13544024 0.70 2 0
65 NONRETURN VALVE 156862 18.62 2 0
66 REAR DOWEL 175644 3.42 2 2
67 FRONT DOWEL 173479 POA 2 0
68 REAR COVER-Not as spare part-With the complete crankcase 170527 POA 1 0
69 THREADED INSERT 13525570 POA 2 0
70 GASKET 170529 25.55 1 35
71 DOWEL 103038 POA 2 0
72 STUD 13541124 22.00 2 1
73 STUD 13540824 0.73 4 0
74 BEARING 171177 16.99 2 10
75 SENSOR FOR FIRING 177672 161.06 2 0
76 RETAINING WASHER 182141 34.69 2 0
