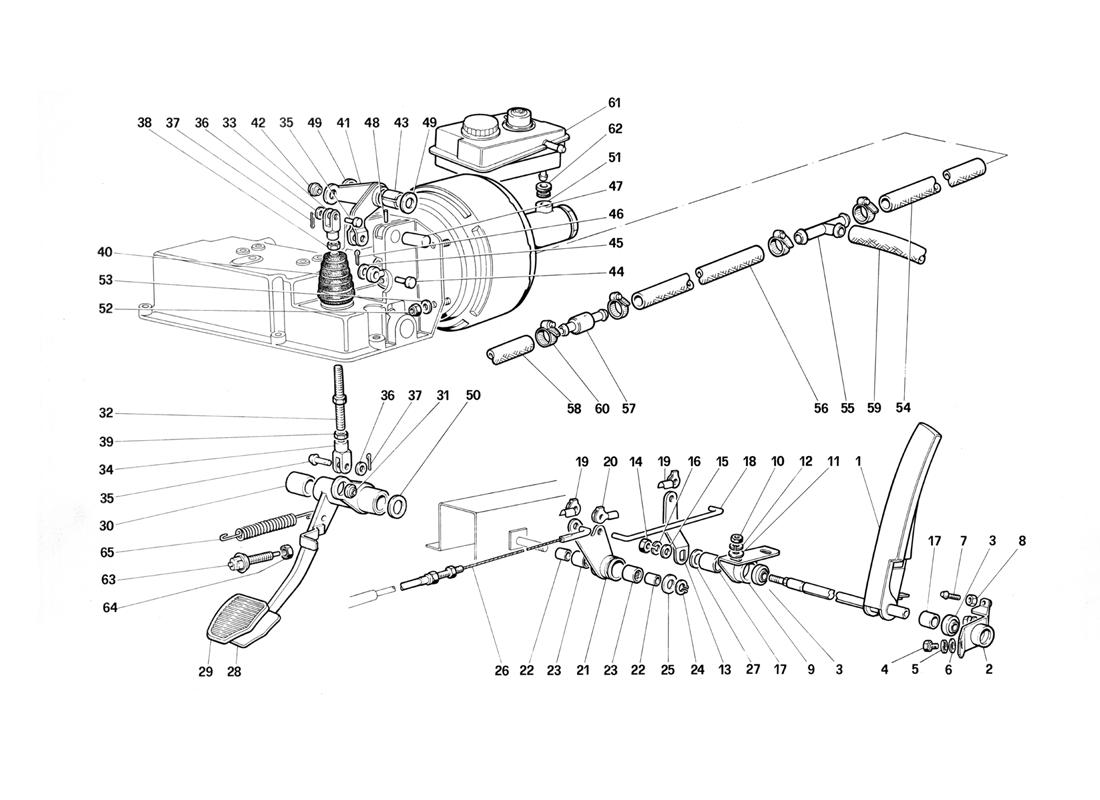

Ferrari / Testarossa (1987) / 052 - Brake Hydraulic System - Accelerator Contorl Vairiants for RHD

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Accelerator pedal 124996 1
2 Pedal support 116526 1
3 Ball joint 122430 2
4 Screw 16043221 2
5 Spring washer 106852 2
6 Washer 10519601 2
7 Adjusting screw 100640 1
8 Lock nut 16102311 1
9 Support for relay lever 116528 9
10 Nut 15896211 2
11 Washer 12643701 2
12 Washer 106850 2
13 Accelerator control lever 124997 1
14 Nut 16100811 1
15 Washer 10519601 1
16 Washer 106852 1
17 Spacer 117991 2
18 Tie rod 124998 1
19 Fastener 118550 2
20 Fastener 119551 1
21 Relay lever 124999 1
22 Inner ring 125001 2
23 Roller cage 101677 2
24 Circlip 11065676 1
25 Washer 117311 1
26 Accelerator control cable 125002 1
27 Shim - 0.7 mm. thick 105931 1
27 Shim - 0.3 mm. thick 105929 1
27 Shim - 0.5 mm. thick 105930 1
28 Brake pedal 119460 1
29 Pedal cover 106950 1
30 Bushing 103163 2
31 Ball joint 100424 1
32 Tie rod 119164 1
33 Fork, R.H. thread 104910 1
34 Fork, L.H. thread 104911 1
35 Pin 10033411 2
36 Washer 103167 2
37 Cotter pin 10796401 2
38 Lock nut 11690911 1
39 Lock nut 10788711 1
40 Bellows 112157 1
41 Brake booster control lever 121248 1
42 Ball joint 100424 1
43 Busching 112161 1
44 Pin 10033411 1
45 Washer 10730521 1
46 Cotter pin 10796401 1
47 Lever supporting pin 112165 1
48 Lock pin 114623 1
49 Shim 112126 2
50 Shim 106083 1
51 Brake booster 121556 1
52 Nut 16104411 4
53 Washer 12601371 4
54 Pipe to 3-way union 125761 1
55 3-way union 100881 1
56 Pipe from 3-way union to valve 120232 1
57 No-return valveOn exhaustion use no. 128435 101538 1
58 Pipe from valve to manifold 127213 1
59 Pipe from 3-way union to vacuum 125031 1
60 Clamp 12179590 8
61 Oil reservoir 119566 1
62 Seal ring 106625 2
63 Stop lights control switch 101663 1
64 Shock absorbing nut 101662 1
65 Clutch pedal return spring 104895 1
