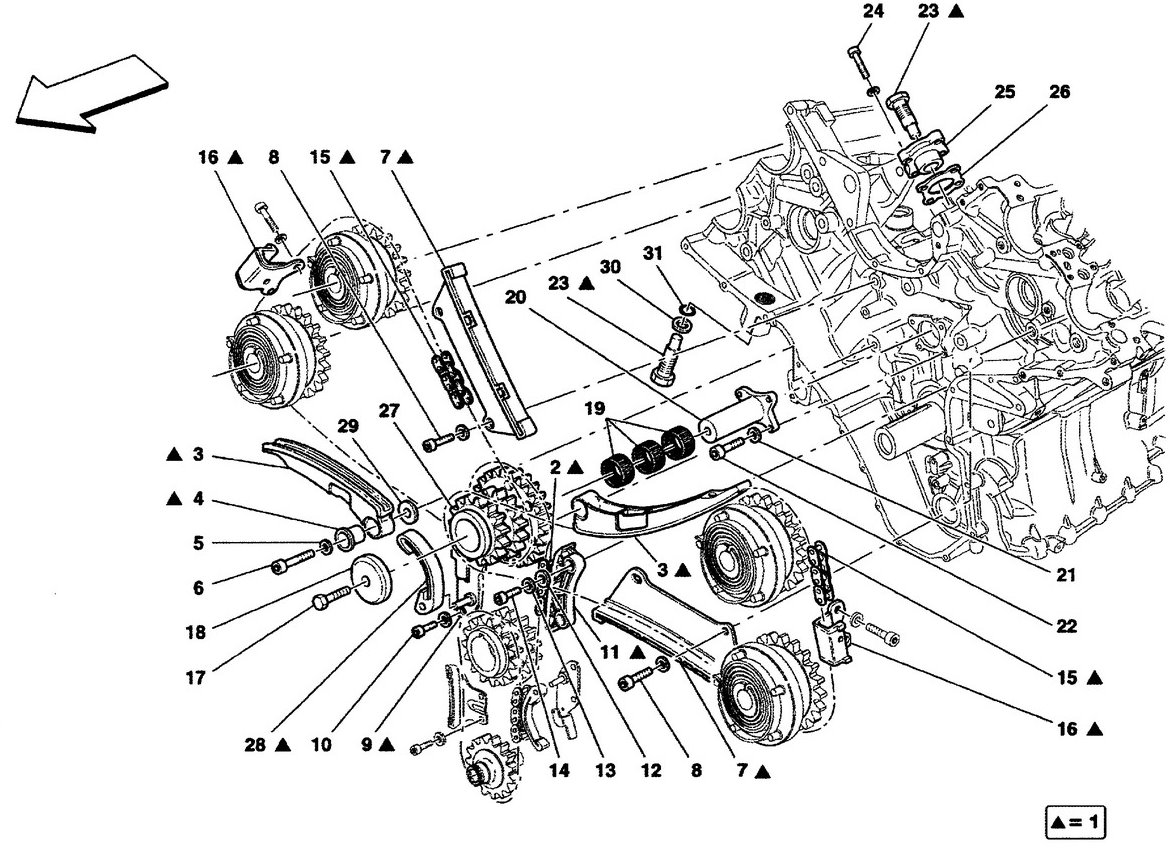

Ferrari / California / 006 - Timing - Controls
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | OIL PUMP AND TIMING CONTROL ASSEMBLY | 248388 | POA | 1 | 0 |
|
|
| 2 | TRANSMISSION CHAIN | 175286 | POA | 1 | 0 |
|
|
| 3 | MOBILE GUIDE SHOE | 186184 | POA | 2 | 0 |
|
|
| 4 | BUSHING | 175303 | POA | 2 | 0 |
|
|
| 5 | WASHER | 10569373 | POA | 2 | 0 |
|
|
| 6 | SCREW | 14306424 | 1.30 | 2 | 0 |
|
|
| 7 | FIXED TENSION | 186185 | POA | 2 | 0 |
|
|
| 8 | SCREW | 231627 | POA | 4 | 0 |
|
|
| 9 | GUIDE SHOE SUPPORT | 186159 | POA | 1 | 0 |
|
|
| 10 | SCREW | 231616 | POA | 2 | 0 |
|
|
| 11 | FIXED TENSION | 186181 | POA | 1 | 0 |
|
|
| 12 | WASHER | 11197774 | 0.25 | 2 | 54 |
|
|
| 13 | WASHER | 12647624 | POA | 2 | 0 |
|
|
| 14 | SCREW | 14432224 | 0.99 | 2 | 17 |
|
|
| 15 | TIMING CONTROL CHAIN | 193616 | POA | 2 | 0 |
|
|
| 16 | UPPER FIXED TENSION | 222310 | POA | 2 | 0 |
|
|
| 17 | SCREW | 16043124 | POA | 1 | 0 |
|
|
| 18 | SHOULDER | 194262 | POA | 1 | 0 |
|
|
| 19 | ROLLER CAGE | 175282 | POA | 3 | 0 |
|
|
| 20 | SUPPORT | 212970 | POA | 1 | 0 |
|
|
| 21 | WASHER | 11181574 | POA | 4 | 0 |
|
|
| 22 | SCREW | 14304224 | POA | 4 | 0 |
|
|
| 23 | HYDRAULIC TIGHTENER | 230652 | POA | 2 | 0 |
|
|
| 24 | SCREW | 231619 | POA | 4 | 0 |
|
|
| 25 | BUSH FOR TIGHTENER | 190060 | POA | 1 | 0 |
|
|
| 26 | GASKET | 247147 | POA | 1 | 0 |
|
|
| 27 | TRANSMISSION TOOTHED WHEEL | 193565 | POA | 1 | 0 |
|
|
| 28 | CHAIN TIGHTENER GUIDE SHOE | 196683 | 33.76 | 1 | 0 |
|
|
| 29 | SHOULDER | 175306 | POA | 2 | 0 |
|
|
| 30 | SPACER | 190171 | POA | 1 | 0 |
|
|
| 31 | O.R. GASKET | 192069 | POA | 1 | 0 |
|
