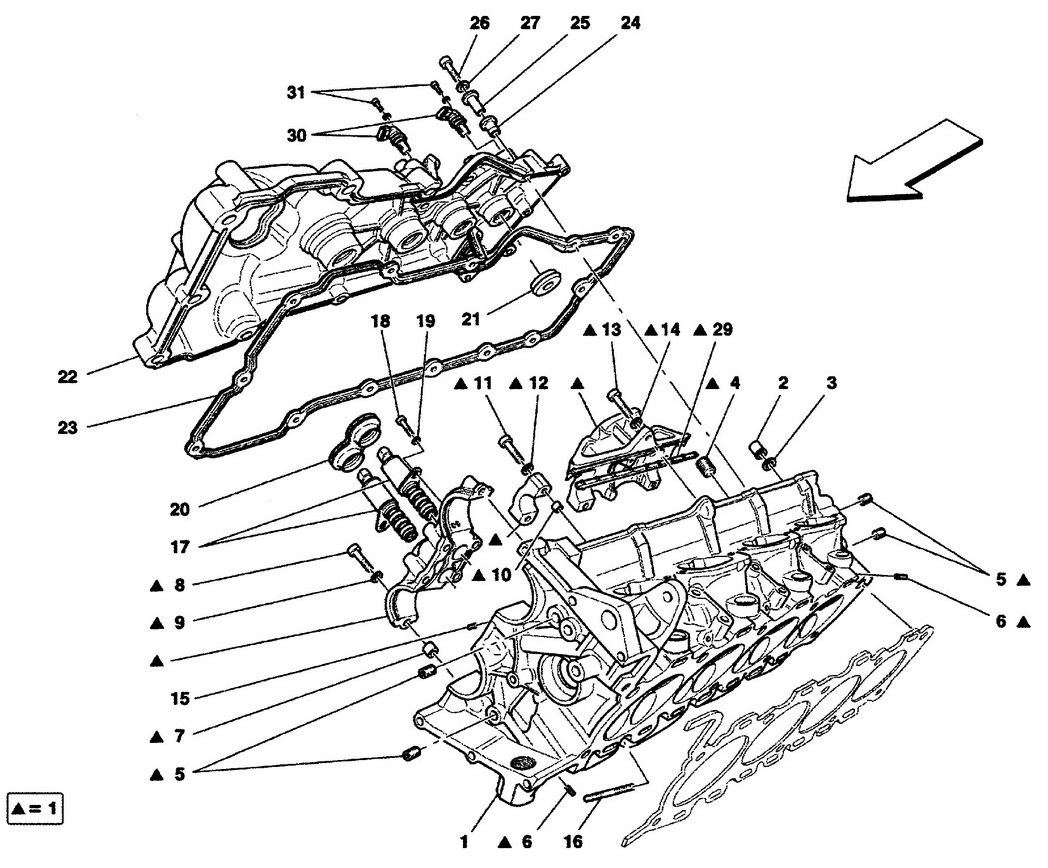

Ferrari / California / 003 - Cylinder Head - Right

Go to order form
Diagram # Name Part # Price Fitted
Quantity		 Quantity
Available		 Quantity Select
1 COMPLETE R.H. HEAD -Applicable up to engine No. 149383- -Valid till stock exhaustion- 252772 POA 1 0
1 COMPLETE R.H. HEAD -Applicable from engine No. 149384- -Applicable after depletion of 252772- 256825 POA 1 0
2 NUT 183524 POA 10 0
3 WASHER 151117 1.21 10 30
4 THREADED PLUG 14325140 POA 5 0
5 THREADED PLUG 14326001 POA 4 0
6 THREADED PLUG 199760 POA 5 0
7 CENTERING DOWEL 102725 1.37 2 10
8 SCREW 14305921 POA 6 0
9 WASHER 11197774 1.43 6 54
10 CENTERING DOWEL 102725 1.37 2 10
11 SCREW 14305621 POA 12 0
12 WASHER 11197774 1.43 12 54
13 SCREW 14305621 POA 4 0
14 WASHER 11197774 1.43 5 54
15 DOWEL -Applicable up to engine No. 149383- 226415 POA 2 0
15 DOWEL -Applicable from engine No. 149384- 256827 POA 2 0
16 STUD 13543424 1.95 8 7
17 OIL PRESSURE CHECK VALVE 227866 POA 2 0
18 SCREW 14304224 POA 2 0
19 WASHER 11181574 POA 2 0
20 GASKET 229353 23.99 1 3
21 GASKET 223982 1.78 4 24
22 R.H. HEAD COVER 249635 POA 1 0
23 R.H. HEAD COVER GASKET 239179 32.42 1 0
24 RUBBER BUSHING 203102 2.73 11 0
24 RUBBER BUSHING 239748 POA 5 0
25 BUSHING 228598 POA 11 0
25 BUSHING 239405 POA 5 0
26 SCREW 213129 POA 11 0
26 SCREW 239501 POA 4 0
27 WASHER 11197774 1.43 16 54
28 STUD -Image not available- 250383 POA 1 0
29 GASKET 239614 5.05 1 1
30 PHASE SENSOR 224573 33.29 2 29
31 SCREW 231616 POA 2 0
