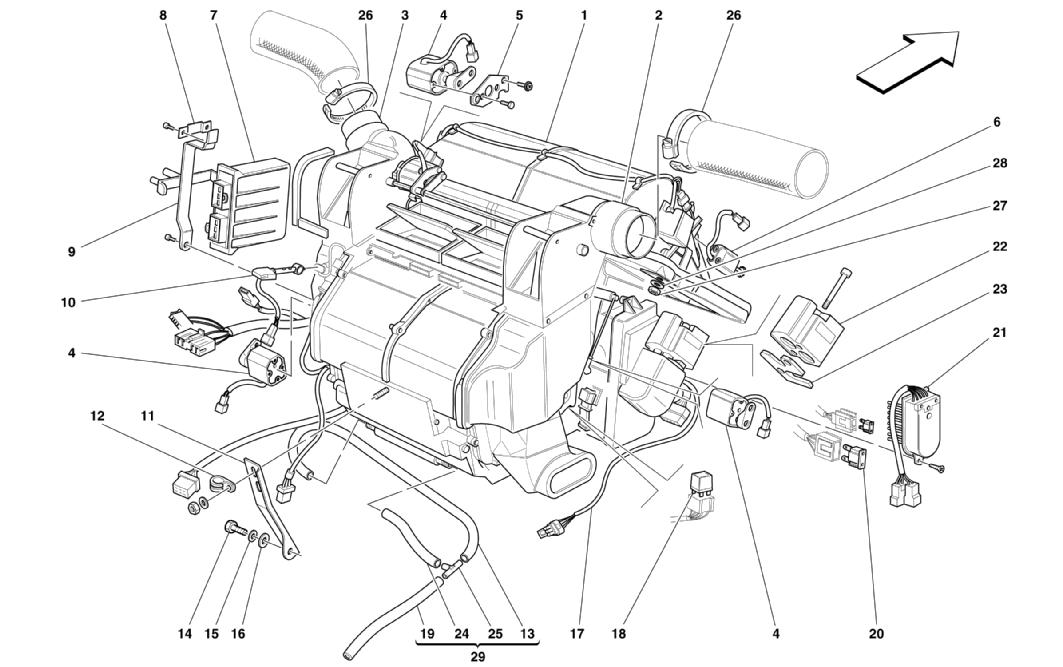

Ferrari / 575M / 062 - Evaporator Unit and Controls

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 COMPLETE EVAPORATOR SET -Not for RHD -Valid from Ass. Nr. 52509 67978900 1
1 COMPLETE EVAPORATOR SET -Valid for RHD -Valid till Ass. Nr. 52508 66634200 1
1 COMPLETE EVAPORATOR SET -Valid for RHD -Valid from Ass. Nr. 52509 67979100 1
2 R.H. AIR DISTRIBUTOR -Not for RHD 64929800 1
2 R.H. AIR DISTRIBUTOR -Valid for RHD 65026000 1
3 L.H. AIR DISTRIBUTOR -Valid for RHD 65026100 1
3 L.H. AIR DISTRIBUTOR -Not for RHD 64680800 1
4 ELECTRIC MOTOR 64280800 3
5 BRACKET 64281300 3
6 R.H. ELECTRIC MOTOR 64280700 1
6 L.H. ELECTRIC MOTOR 64280900 1
7 ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 52509 67979000 1
8 SMALL PLATE 64298300 1
9 BRACKET 66169800 1
10 FEELER 63962000 2
11 BRACKET 64689900 1
12 BRACKET WITH SHEATH 10441590 1
13 SIDE PILOT PIPE FOR CONDENSATE VENT -Not as spare part -Replaced by 66926500 64471000 1
14 SCREW 10902024 1
15 WASHER 10569279 1
16 WASHER 12644424 1
17 A.C. ELECTRIC WIRING -Not for RHD 66283700 1
17 A.C. ELECTRIC WIRING -Valid for RHD 67417100 1
18 RELAY 64286100 1
19 CENTRAL CONDENSATE OUTEL PIPE -Not as spare part -Replaced by 66926500 66926300 1
20 FUSE 40 A 64286200 1
21 ELECTRO-BLOWER REGULATOR 64280200 1
22 EXPANSION VALVE 63960100 1
23 FLANGE 64281400 1
24 PASSENGER SIDE CONDENSATE OUTLET PIPE -Not as spare part -Replaced by 66926500 64471100 1
25 3-WAY UNION -Not as spare part -Replaced by 66926500 64471300 1
26 SCREW COLLAR 13000890 2
27 NUT 104030 1
28 WASHER 116413 1
29 COMPLETE CONDENSATE OUTLET PIPE 66926500 1
