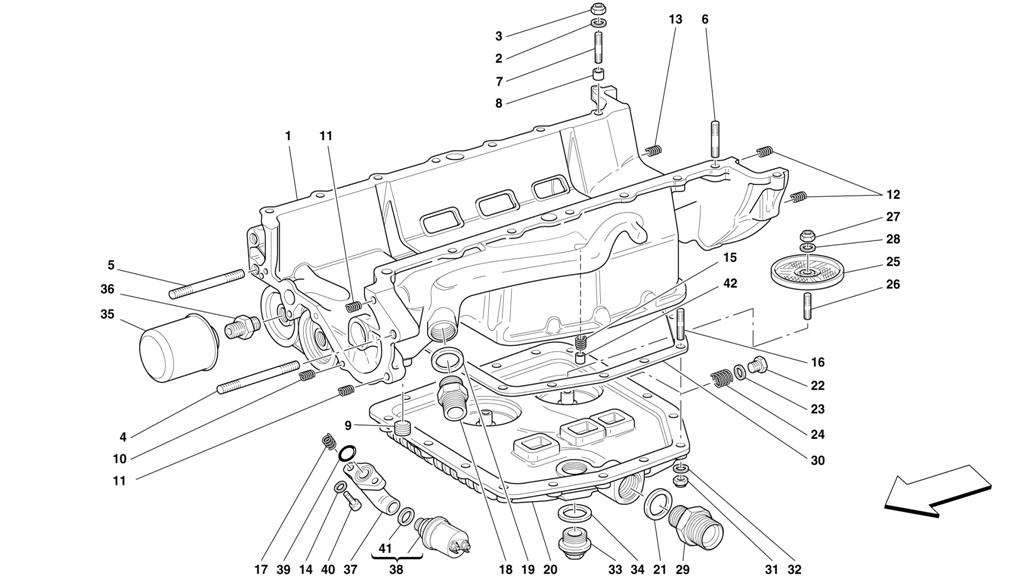

Ferrari / 456M / 026 - Lubrication - Oil Sumps and Filters

Go to order form
Diagram # Name Part # Price Fitted
Quantity		 Quantity
Available		 Quantity Select
N/A COMPLETE OIL SUMP 178926 POA 1 0
1 OIL SUMP -Not as spare part -With complete oil sump 157960 POA 1 0
2 WASHER 12601374 1.04 14 2478
3 NUT 101139 0.32 14 184
4 STUD 13971134 POA 1 0
5 STUD 153423 POA 1 0
6 STUD 13543424 1.95 12 7
7 STUD 13543624 3.45 2 14
8 DOWEL 100041 7.13 2 8
9 PLUG 10269850 3.41 2 14
10 THREADED INSERT 13525870 POA 2 0
11 THREADED INSERT 13525570 POA 4 0
12 THREADED INSERT 13525870 POA 4 0
13 THREADED INSERT 13525570 POA 3 0
14 WASHER 11197771 0.25 2 6409
15 THREADED INSERT 13525770 3.66 4 16
16 STUD 13541224 POA 16 0
17 THREADED INSERT 13525470 0.78 2 27
18 UNION 145085 POA 1 0
19 GASKET 144485 24.97 1 1
20 SUMP COVER 154602 POA 1 0
21 GASKET 144485 24.97 1 1
22 OIL OUTLET PLUG 153903 15.07 1 3
23 GASKET 10280060 0.78 1 98
24 THREADED INSERT 13526570 POA 1 0
25 OIL SUCTION FILTER 125308 765.53 2 3
26 STUD 13540724 0.53 2 10
27 NUT 15896214 0.91 2 28
28 WASHER 11197771 0.25 2 6409
29 UNION 138149 44.28 1 2
30 COVER GASKET 141960 40.02 1 42
31 NUT 102741 1.30 16 1556
32 WASHER 12601274 0.61 16 12570
33 THREADED PLUG 156144 102.76 1 6
34 GASKET 144485 24.97 1 1
35 OIL FILTER CARTRIDGE 206166 73.64 2 25
36 UNION 141707 POA 2 0
37 SUPPORT 143866 137.98 1 0
38 OIL PRESSURE TRANSMITTER 135940 157.95 1 3
39 O.R. GASKET 132248 0.52 1 17
40 SCREW 14305324 0.99 2 0
41 GASKET 10259960 0.78 1 1230
42 CENTERING DOWEL 102704 3.76 2 0
