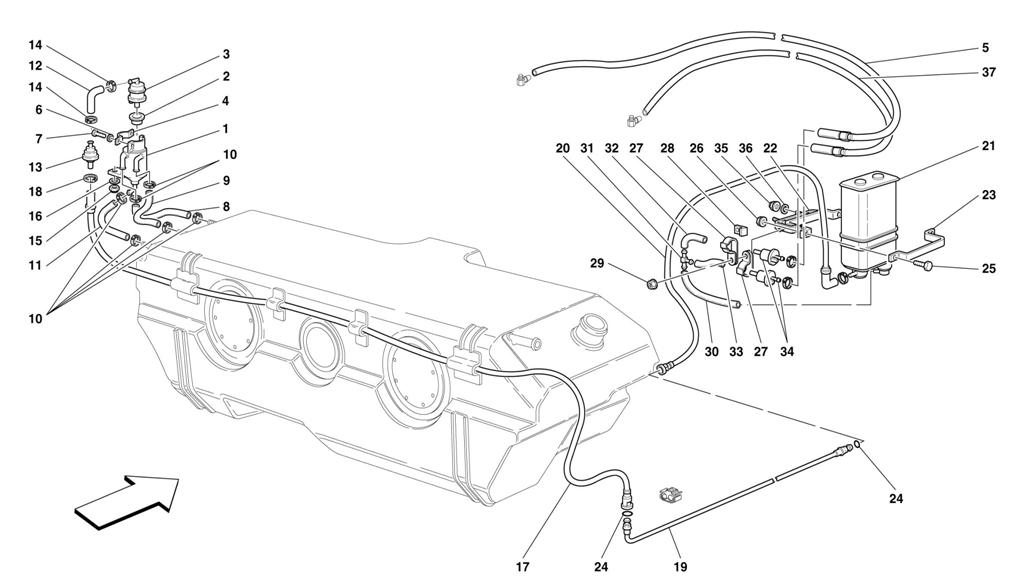

Ferrari / 456M / 014 - Antievaporation Device - Not for US - CDN - and AUS

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 DISAREATOR 155407 1
2 SEAL RING 155313 1
3 ANTI FLOWING BACK VALVE 124193 1
4 BRACKET 155405 1
5 PIPE FROM VALVE TO L.H. MANIFOLD 155779 1
6 WASHER 14496324 2
7 SCREW 13273911 2
8 FRONT PIPE FROM FUEL TANK TO DISAERATOR 116764 1
9 CENTRAL PIPE FROM FUEL TANK TO DISAERATOR 116767 1
10 SCREW COLLAR 13000190 6
11 REAR PIPE FROM FUEL TANK TO DISAERATOR 114880 1
12 SLEEVE 148464 1
13 TANK VENTILATION VALVE 170442 1
14 SCREW COLLAR 13000190 2
15 NUT 102948 2
16 WASHER 14496424 2
17 PIPE FROM VALVE TO INTERMEDIATE PIPE 155762 1
18 SCREW COLLAR 13000190 1
19 INTERMEDIATE PIPE 155763 1
20 PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER 155765 1
21 CHARCOAL CARBON CANISTER 173791 1
22 FRAME FASTENING FILTER BRACKET 156452 1
23 COMPLETE BRACKET 154385 1
24 O.R. GASKET 133956 4
25 SCREW 10902124 2
26 NUT 102948 2
27 FIXING BRACKET 164437 2
28 PLATE 137716 1
29 NUT 15896214 1
30 PIPE FROM FILTER TO UNION 114874 1
31 3-WAY UNION 105990 1
32 PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE 164439 1
33 PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE 164440 1
34 ANTI-EVAPORATION VALVE 162412 2
35 NUT 102948 2
36 WASHER 14499324 2
37 PIPE FROM VALVE TO R.H. MANIFOLD 155778 1
