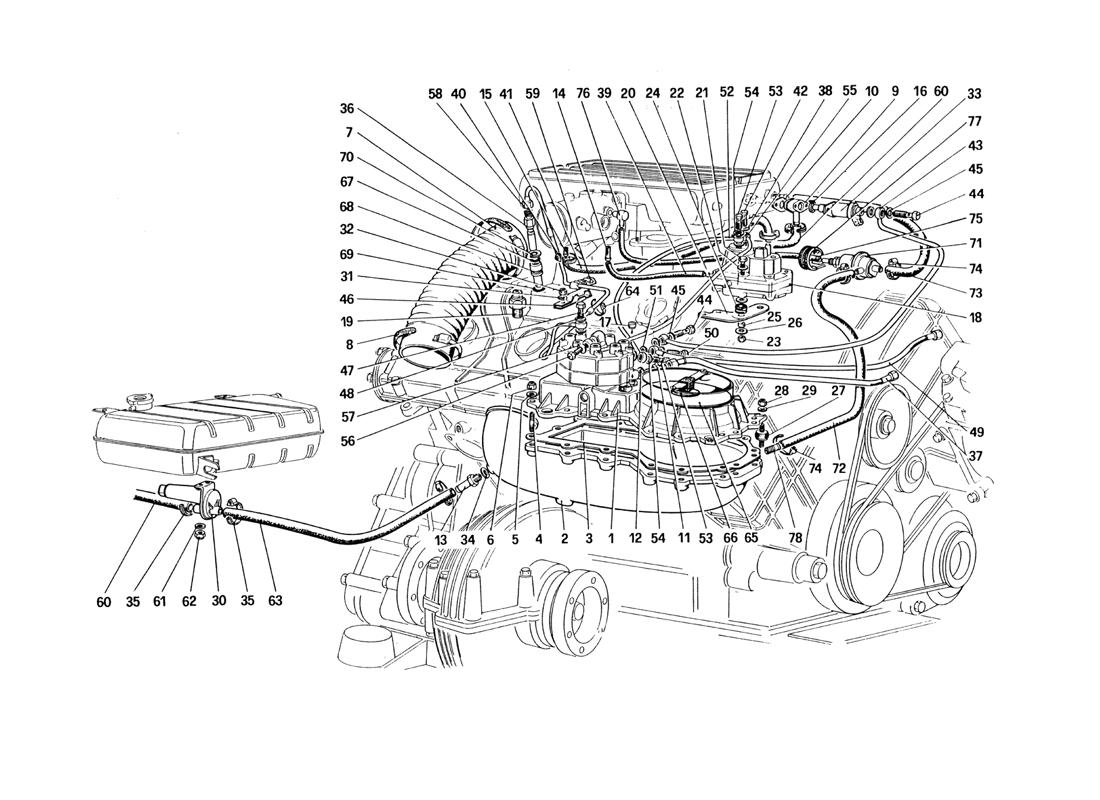

Ferrari / 328 (1985) / 013 - Fuel Distributor Lines - Not for US Version

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Support for metering device, complete 127159 1
1 Metering device 124754 1
2 Support for metering device, completeFor CH Version 129645 1
2 Support for metering deviceWith unit no. 129645 129644 1
3 Gasket 115011 1
4 Stud 13541121 15
5 Washer 12601271 15
6 Nut 12574211 15
7 Union 112030 1
8 Clamp 117437 2
9 Union 121056 1
10 Gasket 115005 1
11 Union with filter 115498 1
12 Gasket 11270160 1
13 Threaded unionFor CH use no. 115751 116860 1
14 Threaded union 113637 1
15 Threaded union 113652 1
16 Sealing ring 103039 1
17 Inviolability cap 115650 1
18 Warm up regulator 119825 1
19 Time termal switchFor CH use no. 118790 113980 1
20 Support 118291 1
21 Screw 10903821 2
22 Washer 12604271 2
23 Nut 12574211 2
24 Grommet 103549 2
25 Spacer 103550 2
26 Washer 12643701 2
27 Vibration damping support 102947 3
28 Nut 12575411 3
29 Washer 12601271 2
29 Washer 12640601 1
30 Additional air valveFor CH use no. 121744 120222 1
31 Washer 11197771 1
32 Nut 12575411 1
33 Auxiliary starting assembly 115739 1
34 Gasket 10280060 1
35 ClampFor CH use no. 12180290 12179590 4
36 Injector 113975 8
37 Pipe from fuel tank 117885 1
38 Gasket 10260160 2
39 Pipe For CH use no. 115412 115002 1
40 Clamp 12179190 2
41 Pipe 118293 1
42 Pipe union 113670 1
43 Pipe 115735 1
44 Pipe union 113664 2
45 Washer 14330260 4
46 Bracket for clamp 115417 1
47 Pipe union 113670 8
48 Gasket 10260160 16
49 Return pipe 117787 1
50 Union 111644 1
51 Gasket 113910 2
52 Return pipe from regulator 118398 1
53 Union 113664 2
54 Gasket 14330260 4
55 Delivery pipe to regulator 115507 1
56 Union 113664 1
57 Gasket 14330260 1
58 Pipe from metering device to cylinder 3 118592 1
58 Pipe from metering device to cylinder 4 118593 1
58 Pipe from metering device to cylinder 5 118594 1
58 Pipe from metering device to cylinder 6 118595 1
58 Pipe from metering device to cylinder 7 118596 1
58 Pipe from metering device to cylinder 8 118597 1
58 Pipe from metering device to cylinder 1 118590 1
58 Pipe from metering device to cylinder 2 118591 1
59 Pipe from metering device to cylinder 115418 1
59 Pipe from metering device to cylinder 115595 1
59 Pipe from metering device to cylinder 113896 1
59 Pipe from metering device to cylinder 117279 1
60 Pipe from metering device to cylinder 128204 1
61 Pipe from metering device to cylinder 12601271 1
62 Pipe from metering device to cylinder 12574211 1
63 Pipe from metering device to cylinder 117548 1
64 Pipe from metering device to cylinder 110381 1
64 Pipe from metering device to cylinder 111193 1
65 Pipe from metering device to cylinder 120812 1
66 Pipe from metering device to cylinder 120809 1
67 Sealing ring 113570 8
68 Bushing 113399 8
69 Sealing ring 101031 8
70 Seeger 103326 8
71 Valve for by - pass 115741 1
72 Hose from valve to support 121823 1
73 Pipe to valve from air delivery 128300 1
74 Clamp 12179490 4
75 Pipe 124790 1
76 Union 127164 1
